Dreiphasen-Thyristorregler der JW-Serie

JW series three-phase thyristor regulators

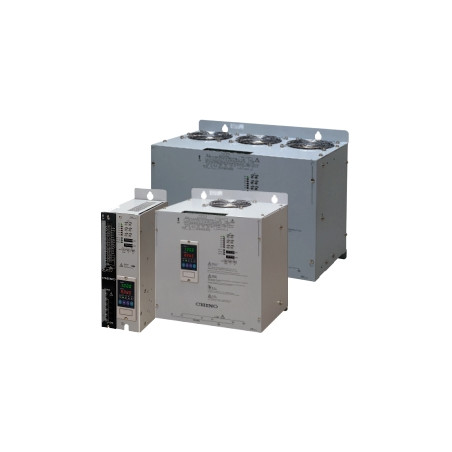

JW is a series of compact and lightweight three-phase power regulators. Two control systems (phase and group) are built into the unit. The control type is selected using the corresponding terminals. For phase control, the regulator can optionally be equipped with voltage, current or power feedback functions depending on the type of load. Remote control and monitoring of the controller operation is possible by connecting an external management unit.


Features:

  • compact construction
  • phase control / group control
  • optional operator panel - displays information about current, voltage, power, possibility to change parameters, regulator operation, RS422 or RS485 communication
  • disconnection alarm and current limitation
  • protection - fast fuses


Technical data

Nominal voltage UN 400 VAC
Permissible voltage variations 90..110% UN
Nominal frequency
 50 Hz/60 Hz (automatic choice)
Nominal current
 50 A, 75 A, 100 A
Operating temperature
 -10 ÷ 50 °C
Relative humidity
 30..90%Rh
Insulation resistance
50 MΩ at 500VDC (between power supply and ground)
Dielectric strength 2500 VAC, 1 min
Feedback voltage, current, power, no feedback
Input signal* 4..20 mA DC (input res. 100 Ω),
1..5 VDC(input res. 50 kΩ),
Potenciometer 10 kΩ
Output range
 0..98% UN
Min. current load
 0,5 A (for 98% output range)
Types of loads resistance load, induction load
Type of control
 phase or group control
(selectable by a switch)
Weight approx. 8kg. - 50 A
approx. 13kg. - 75 A, 100 A


Types

Type Nominal current [A]
JW40050NA003 50
JW40075NA003 75
JW40100NA003 100

Attention:
Models for other currents available on special order.



Dimensions - drawings

Dimensions [mm] - 50A
Dimensions [mm] - 75A, 100A
