Leitender Silikonkleber.
  • Leitender Silikonkleber.

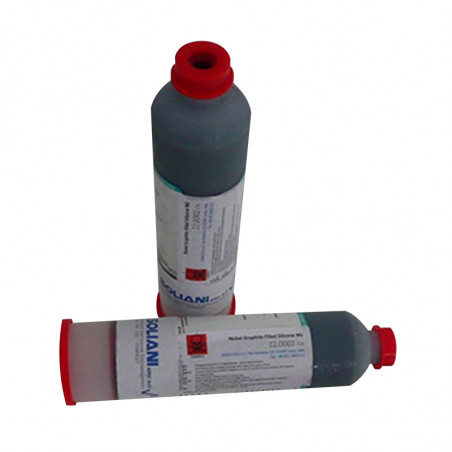

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: SOLIANI

Leitender Silikonkleber.

Conductive silicone adhesives

Description:
Room temperature curing elastomer; they are supplied as readily extrudable paste that cures rapidly when exposed to atmospheric moisture. Whencompletely cured, these conductive adhesives series are highly resiliant elastomers that exhibitsuperior adhesion to a variety of substrates as well as low volume resistivity.

Features:
  • Electrically conductive
  • Non corrosive
  • One part – no mixing
  • EXCELLENT ADHESION TO VARIOUS SUBSTRATES


Application:
Surface to be bonded must be clean, dry andoil free. Typical solvents used to clean substrates are acetone, methyl ethyl ketone, xylene and isopropyl alcohol. Apply adhesives directly from their package to the desired area. If this product is to be used as a sealant, it should be applied liberally to the interface. It is important to force adhesives into the material being bonded as much as possible. If maximum adhesion and RFI shielding are desired, apply weight to the sealed interface during cure.

Safety and handling information:
WARNING! Contact with adhesives is irritating to skin and eyes. If contact is e with the skin, the excess should be wiped off with a dry cloth or paper towelfollowed by a waterless hand cleaner such as the type used to clean grease or oil from the skin.

Clean up:
Uncured adhesives may be removed from a surface with xylene or acetone.

Storage Information
Shelf life or adhesives are one (1) year from date of shipment provided the products are stored in the dry, tightly sealed, original container below 23°C (73.4 F)

Standard tube
0.5 fl. oz. (metal tube)
1.0 fl. oz. (metal tube or cartridge)
2.5 fl. oz. (cartridge)
10.3 fl. oz. (cartridge))

Technical data

  Unit NG
Nickel Graphite		 SPG
Silver Glass		 SNK
Silver Nickel		 SPA
Silver
Aluminum		 SPC
Silver Copper		 S
Pure Silver
Color   Dark Grey Light Tan Tan Blue Dark Tan Tan
Consistency   Thick paste Thick paste Thick paste Thick paste Thick paste Thick paste
Specific Gravity (typical) g/cm3 2,3 1,82 3,58 1,86 3,58 4,2
Hardness (+/-5) Shore A 65 70 75 68 70 65
Volumen Resistivity (Max) Ohm -cm 0,1 0,01 0,008 0,01 0,008 0,005
Llap shear strenght (minimum) PSI 70 120 120 175 200 225
Operating temperature range °C -0,25 -0,25 -0,25 -0,25 -0,25 -0,25
Skin Over Min 15 15 15 15 15 15
Tack free Min 45 90 90 90 90 90
Cure for handling HRS 24-gru 24-gru 24-gru 24-gru 24-gru 24-gru
Full cure HRS 72-144 72-144 72-144 72-144 72-144 72-144
Tensile strenght (minimum) PSI 250 250 250 200 250 250
Elongation (minimum) % 30 35 35 35 40 35

Order example

SOL - O8 - XX - 2,5
XX - NG, SPG, SNK, SPA, SPC, S ( Optional).
