Hersteller: Sisel

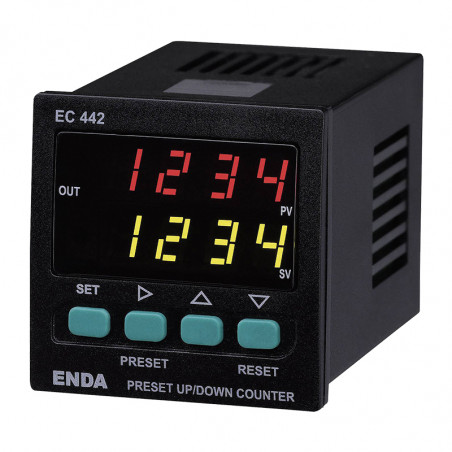

Zähler EC442 Enda

Product withdrawn from production
contact us

* 48x48mm sized.
* 2x4 digits display.
* Easy to use by front panel keypad.
* Counting up and down with a 2 channel inputs having a 90° phase shift.
* Input frequency can be selectable.
* Prescaler factor can be adjusted between 0.001 and 9.999.
* Decimal point can be adjusted between 1. and 3. digits.
* Sensor type can be selected as PNP, NPN or Encoder.
* Single set-point control is made by a single relay output.
* Output can be energized continuously or just for a time interval of 0.1
to 999.9 seconds.
* Selectable functional reset input.
* Input offset feature.
* Parameter access protection on 3 levels.
* Easy connection by removable screw terminal.
* CE marked according to European Norms.

Technical data

- Dimensions
48x48x87mm
- Indicator
LED, 2x4 digits, height7,1mm
- Count inputs (CP1, CP2)
2 channels (max. 9999Hz, 5V to 30V pulse)
- Frequency
25, 500,1000, 2000, 5000,7500,10000Hz (selectable by programming)
-Control output (OUT)
Relay : 250V AC, 2A (for resistive load), NO+NC
Open collector output (S.S. OUT): Max. 30V DC, 100mA
- Reset input
 PNP: Positive reset (5V to 30V pulse with adjustable pulse time between 2ms and 50ms)
NPN: GND terminal is connected to the RESET IN terminal.
- Supply
230V AC +10% -20% or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS module.
- Power consumption
5VA
- Auxiliary power supply
12VDC, max. 50mA
- Ambient/storage temperature
0... 50°C
- Keyboard
Microswitch
- Data storage
EEPROM (minimum 10 years)
- Wiring
2.5mm² screw-terminal connections
- Weight
210g


Type Power supply
EC442 230V AC
EC442-SM 9-30VDC / 7-24VAC

Dimensions:


Connection scheme
