Hersteller: Cosime

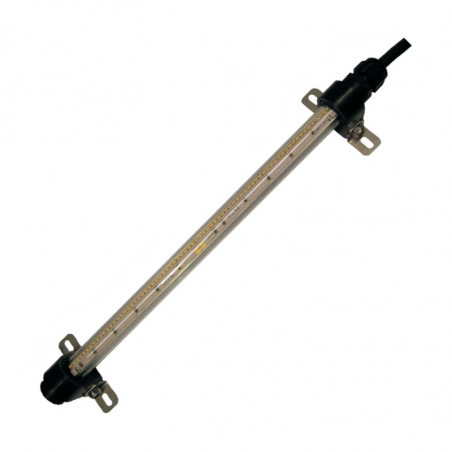

LTC-Leuchte (-P)

LTC lighting fixture is a solution placed between typical, lineal lamps and working lamps. Uncommon power supply works in machine building industry and installations which require 24V DC. Due to its compact size and light weight it is suited for mobile applications which can be crucial in hazardous areas which consist explosion-danger areas.



General characteristics


Gas zones II 2G Ex emb IIC T5/T4 IP66 Zone 1, 2, 21, 22
Dust zones II 2D Ex mb IIIC T95°C/T130°C IP66 -20°C to +40°C -20°C to +60°C



Technical characteristics


Material Policarbonate tube V0
Polyammide Pa66
Installation Stainless steel lugs
Cable H07RN-F 2x1 mm2, lenght 5m
LED source Module 72 LED by OSRAM
Lifetime >50 000 hours







Available models


Code Power
[W]
L X Flux
[lm]
Color Color temp.
[K]
Radiance angle Voltage Weight
[kg]
LTC 10 9 341 320 800 Daylight 5500 120° 24V DC 1,2
LTC 20 17 628 607 1600 Daylight 5500 120° 24V DC 2,1
LTC 30 26 915 894 2400 Daylight 5500 120° 24V DC 3,0
LTC 35 35 1202 1181 3200 Daylight 5500 120° 24V DC 4,2



Codice LTC 10 EXIT


Except standard construction, LTC fixture comes also as a mobile lamp which fits maintence workers needs. Efficient light source helps in daily work and makes it possible to carry the lamp into the explosion zone.
Material Policarbonate tube V0
Polyammide Pa66
Installation Portable with stainless steel hook
Cable H07RN-F 2x1 mm2, 5m
LED source Module 72 LED by OSRAM
Lifetime >50 000 hours





Available models


Code Power
[W]
L Flux
[lm]
Color Color temp.
[K]
Radiance angle Voltage Weight
[kg]
LTC 10P 9 475 800 Daylight 5500 120° 24V DC 1,4
LTC 20P 17 680 1600 Daylight 5500 120° 24V DC 2,3
