Multipar-Dichtungen mit einem geflochtenen Gitter
  • Multipar-Dichtungen mit einem geflochtenen Gitter

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: TEMAS

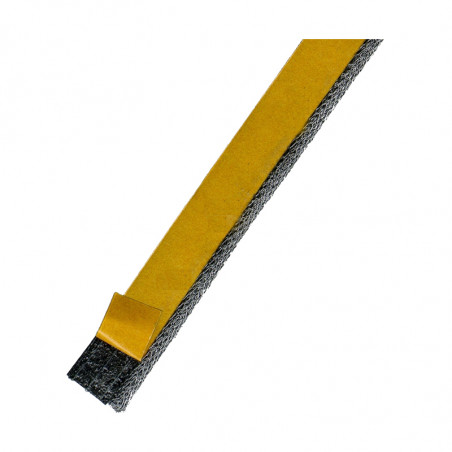

Multipar-Dichtungen mit einem geflochtenen Gitter

  • combination of knitted wire mesh bonded to an elastomer which provides an emi shields as well as an environmental sealing
  • complete choice of knitted wire materials
  • pressure sensitive adhesive on elastomer for easy application
  • customized and cut-to-length gaskets

Range of standard elastomer strips:

  • neoprene sponge  (NS)
  • epdm sponge  (ES)

And wire materials:

  • monel (MO)
  • tinned copper clad steel (TC)
  • stainless steel  (SL)
  • beryllium copper  (BC)
  • tinned copper  (TR)
  • aluminium (AL)



Complete the P/N with:
2-letters ELASTOMER SUFFIX
2-letters METAL SUFFIX


Order example

REM.032.032.159.SS.TR single 3.2x3.2 mm Tinned Copper mesh combinedto 3.2x15.9 mm Epdm Sponge
REDM.032.064.095.NS.MO double 3.2x6.4 mm Monel mesh combined to 3.2x9.5 mm Neoprene Sponge

Single

Uszczelki wielopaskowe z siatką plecioną

P/N Height
[mm]		 Mesh Width
[mm]		 Elastomer W.
[mm]

REM.024.032.064

 2.4 3.2 6.4

REM.024.032.095

 2.4 3.2 9.5

REM.032.032.127

 3.2 3.2 12.7

REM.032.032.159

 3.2 3.2 15.9

REM.032.064.127

 3.2 6.4 12.7

REM.048.048.127

 4.8 4.8 12.7

REM.048.064.159

 4.8 6.4 15.9

REM.048.064.191

 4.8 6.4 19.1

REM.048.095.127

 4.8 9.5 12.7

REM.064.064.159

 6.4 6.4 15.9

REM.064.095.191

 6.4 9.5 19.1

REM.095.064.127

 9.5 6.4 12.7

REM.095.064.191

 9.5 6.4 19.1

Double

Uszczelki wielopaskowe z siatką plecioną

P/N Height
[mm]		 Mesh Width
[mm]		 Elastomer W.
[mm]

REM.024.032.064

 2.4 3.2 6.4

REM.024.032.095

 2.4 3.2 9.5

REM.032.032.127

 3.2 3.2 12.7

REM.032.032.159

 3.2 3.2 15.9

REM.032.064.127

 3.2 6.4 12.7

REM.048.048.127

 4.8 4.8 12.7

REM.048.064.159

 4.8 6.4 15.9

REM.048.064.191

 4.8 6.4 19.1

REM.048.095.127

 4.8 9.5 12.7

REM.064.064.159

 6.4 6.4 15.9

REM.064.095.191

 6.4 9.5 19.1

REM.095.064.127

 9.5 6.4 12.7

REM.095.064.191

 9.5 6.4 19.1


Special profiles

Other size, configurations or ready-to-mount finished gaskets (according to your drawing) available upon request

.

Shielding performances comparison

Uszczelki wielopaskowe z siatką plecioną

This graph compares general performances in E-field and H-field screening of four multistrip gaskets (P/N: REM.064.064.159.NS.XX) made of different wire materials (monel, stainless steel,
tinned copper and aluminium). Tests are performed in accordance with MIL STD 285

Weniger
Weiterlesen
