Multi-Level IGBT Module
  • Multi-Level IGBT Module

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Mitsubishi

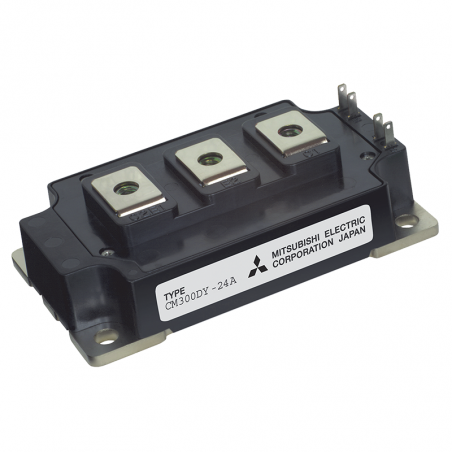

Multi-Level IGBT Module

Technical Data
- Three level IGBT modules with current range from 10 up to 600A
Application:
- UPS emergency power supplies
- Photovoltaic inverters
-  Electrical drive

Modules from 75[A] to 600[A] (600V)
Type Ic [A] Casing
75 110 165 200              300 400 600
13w1

CM75YE13-12F

            TL 1
4w1

CMI 10YE4-12F

          TL 2
4w1

CM165YE4-12F

CM200YE4-12F

      TL 3
2w1

CM300YE2N-12F CM300YE2P-12F

CM400YE2N-12F CM400YE2P-12F

  TL 4
2w1

CM600YE2N-12F CM600YE2P-12F

TL 5

Modules from 10[A] to 600[A] (600V)
Type Ic [A] casing
10 15 25 40 50
13w1

CM10YE13-12H

CM15YE13-12H

CM25YE13-12H

    128 x 78
13w1

CMI 10YE4-12F



CM40YE13-12H

CM50YE13-12H

127 x 113,5 (TL 1)

13W 1 module topology
RC circuit scheme
MULTILEVEL IGBT MODULES - 13W 1 module topology MULTILEVEL IGBT MODULES - RC circuit scheme
Casing TL 1
Casing TL 2
Casing TL 1 - MULTILEVEL IGBT MODULES MULTILEVEL IGBT MODULES - Casing TL2
Casing TL 3
Casing TL 4
MULTILEVEL IGBT MODULES - Casing TL3 MULTILEVEL IGBT MODULES - Casing TL4
Casing TL 5

MULTILEVEL IGBT MODULES - Casing TL5
