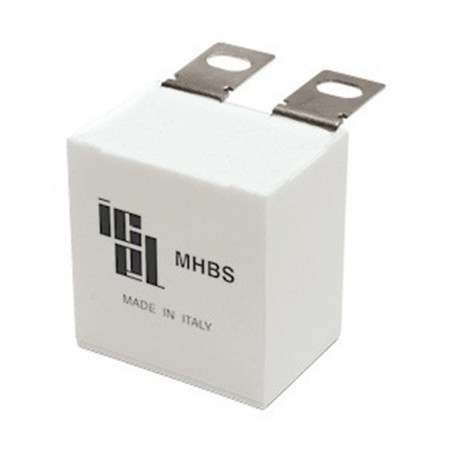

MHBS - Polypropylenkondensatoren
  • MHBS - Polypropylenkondensatoren

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Icel

MHBS - Polypropylenkondensatoren

Main applications

  • DC-Link
  • Switching capacitor for industrial and motor speed controls, SMPS, solar inverters, power converters and UPS
  • AC output filtering (not for input filtering)
  • Suitable for AC (not for across the line) applications with restrictions: please refer to MHBA and THZ
  • High voltage and high capacitance in small size with long life expectancy,
  • High current and high frequency operation capability


Execution and reference standard

  • Extended metallized film
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS

MHBS Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm) Pitch (mm)
575 Vdc (240 Vac) 3 ÷ 100 12.5 ÷ 27 4 ÷ 27.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
700 Vdc (285 Vac) 2.2 ÷ 80 14.5 ÷ 31 4 ÷ 28.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
800 Vdc (315 Vac) 2 ÷ 65 16.5 ÷ 36 4 ÷ 28.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
900 Vdc (350 Vac) 2.2 ÷ 50 18.5 ÷ 41.5 5 ÷ 28.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
1000 Vdc (400 Vac) 1.2 ÷ 40 21 ÷ 47 3.5 ÷ 27.5 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
1100 Vdc (420 Vac) 1 ÷ 35 23 ÷ 50 3.5 ÷ 27 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
1275 Vdc (440 Vac) 0.68 ÷ 25 28 ÷ 61 4 ÷ 26 11x20x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5



Product Card - Download
