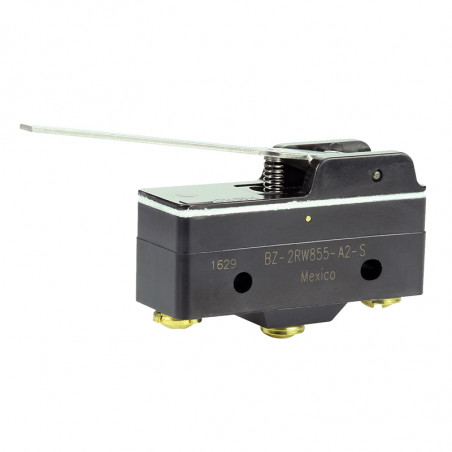

MICRO SWITCH™ Basisschalter BZ-Serie

We're offering BZ series microswitches from Honeywell - intended for use in applications requiring precision and durability.

This type of switch is inled Snap Action Switches, and is characterized by 15 A amperage, AC voltage of 600 VAC, DC voltage of 250 VDC, maximum working temperature up to + 85°C, and minimum temperature of - 55°C.

BZ series microswitches can be used in applications such as:

  • Building control and equipment,
  • Doors and lifts,
  • Semi-trucks and trailers,
  • Valves,
  • Industrial timers,
  • Communication systems,
  • Commercial and industrial food sector service equipment,
  • Agriculture irrigation equipment,
  • Medical instrumentation.

Type Drive Electrical parameters Characteristic Drawing number
O.F.
[N]		 R.F. min
[N]		 P.T.
max
[mm]		 O.T.
min
[mm]		 D.T. max
[mm]		 O.P.
mm]
BZ -2RW80-A2 Straight lever 63,5mm 15A 0,7 1,14 - 5,56 0,18-1,27 19,1 1
BZ -2RW82-A2 Lever with roller 48,3mm 15A 0,97 0,21 - 3,96 0,10-1,0 30, 17±0,76 2
BZ -2RW822-A2 Lever with roller 26,7mm 15A 1,67 0,42 - 2,39 0,08-0,51 30,17 3
BZ -2RW825-A2 Lever with one side roller 09,4x3,8111111 15A 2,22 0,42 - 1,52 0,38 28,96 4
BZ -2RW826-A2 Lever with one side roller 04,83x4,83mm 15A 1,67 0,42 - 2,39 0,08-0,51 41,34 4
BZ -2RQ18-A2 Arbor with roller 15A 2,5-3,61 1,11 0,38 3,56 0,01-0,05 33,32±1,14 5
BZ -2RQ181-A2 Arbor with perpendicular roller 15A 2,5-3,61 1,11 0,38 3,56 0,01-0,05 33,32±1,14 6
BZ -2RQ1-A2 Arbor 15A 2,5-3,61 1,11 0,38 5,56 0,01-0,05 21,82 7
BZ -2R-A2 Mini arbor 15A 2,5-3,61 1,11 0,38 0,13 0,01-0,05 15,88 8

O.F. - Operating Force
R.F. - Release Force
P.T. - Pretravel
O.T. - Overtravel
D.T. - Diferential travel
O.P. - Operating Position
F.P. - Free Position

Drawing 1 [mm/in]
 Drawing 2 [mm/in]
 Drawing 3 [mm/in]
Drawing 4 [mm/in]
 Drawing 5 [mm/in]
 Drawing 6 [mm/in]
Drawing 8 [mm/in]
 Drawing 7 [mm/in]
