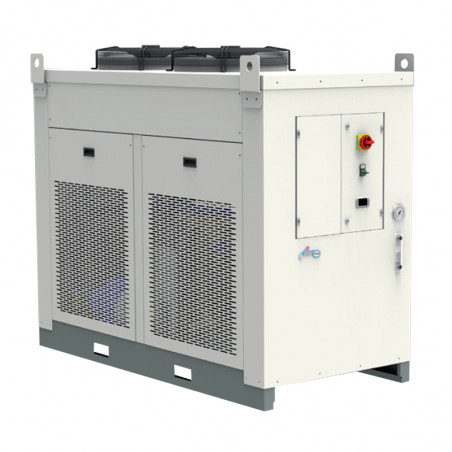

HP Minikühler der TCO 2500 Serie - 3900 W.
  • HP Minikühler der TCO 2500 Serie - 3900 W.

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: TEXA industries

HP Minikühler der TCO 2500 Serie - 3900 W.

Mini industrial coolers TCO series 2500 - 3900 W


Cooling power range 1600 - 3900 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consists of high pressure oil pump 20 bar, pressure control valve 5bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.


Dimensions


Chłodnice, Chillery do chłodzenia oleju serii 1 TCO wymiar



Technical data

Type TCO 15 TCO 22 TCO 35
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Nominal cooling power [W] 1600 1900 2200 2550 3300 3900
Ambient temperature range [°C] +15 ÷ +45
Oul temperature range [°C] +20 ÷ +35
Cooling liquid R134a
Power supply [V/Hz] 230/50
Power [W] 1770 2170 2370
Pump
Oil flow [l/min] 12,0 12,0 12,0
Oil pressure [bar] 20,0 20,0 20,0
Container capacity [l] 30 (oil container mounted on clients request)
Water terminal [BPS] ½"
Weight [kg] 54 86 88
