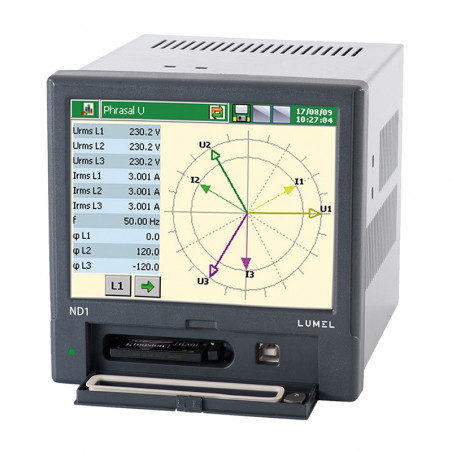

ND1 Energy Network Quality Analyzer
  • ND1 Energy Network Quality Analyzer

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: LUMEL

ND1 Energy Network Quality Analyzer

  • Measurement and recording of over 300 electric energy quality parameters acc. to EN 50160 standard.
  • Operation in 3 or 4-wire, 3-phase, balanced or unbalanced
    power networks.
  • Analysis of current and voltage harmonics up to the 51 st.
  • Configurable archives of actual values and event recording.
  • Data archiving on a CompactFlash card - memory up to 4 GB.
  • Web Server, FTP Server.
  • Interfaces: RS-485 (Modbus Slave, Modbus Master).
    Ethernet 10 Base-T (Modbus TCP/IP Server) and USB.
  • Colour touch screen: LCD TFT 5.7”, 320 x 240 pixels.
  • Users friendly interface based on Windows®CE.
  • IP65 protection grade from the frontal side.
  • Recording of operator’s messages.
  • Synchronization of RTC clock with the NTP time server.

Example of application

Measurement, visualization and recording of over 300 parameters of 3-phase balanced or unbalanced power network

  • phase voltages: U1, U2, U3 and phase currents: I1, I2, I3
  • phase-to-phase voltages: U12, U23, U31
  • active phase powers: P1, P2, P3
  • reactive phase powers Q1, Q2, Q3
  • apparent phase powers: S1, S2, S3
  • active power factors: PF1, PF2, PF3
  • reactive/active power factors: tφ1, tφ2, tφ3
  • mean phase-to-phase voltage: US Umf
  • current in neutral wire and mean 3-phase current: IO, IS
  • active, reactive and apparent 3-phase power: P, Q, S
  • mean 3-phase power factors: PF, tφ
  • frequency f and frequency deviation
  • 15 minutes’ mean active power: PAV
  • active, reactive and apparent 3-phase energy: EnP, EnQ, EnS
  • THD for voltage and phase current
  • harmonicsfor current and phase voltage up to 51st!
  • storage of min and max values
  • recording of dips and voltage decays
  • monitoring of run function
  • voltage asymetry
  • flicker parameters: PST, PLT

Inputs
Kind of input Measuring range Parameters Basic error
Voltage input 57,7/100 V, 230/400 V
or 400/690 V		 0,05...1,2 Un ± 0,2%
Current input 1 A lub 5 A 0,005...1,2 In ± 0,2%
Logic input 0/5...24 V d.c. switch frequency up to 50 Hz

Outputs
Kind of output Properties
Analog output 4 programmable current outputs of 0/4...20 mA, load resistance < 500 Ω
Relay output 6 programmable electromagnetic relays, voltageless NOC contacts, load capacity: 250 V a.c./1 A a.c.
Output to supply object transducers 2 outputs of 24 V d.c./30 mA

Digital interfaces
Interface type Properties
RS-485 2 interfaces: MODBUS Slave and Master, baud rate: 300…256000 bit/s, transmission mode ASCII/RTU
USB Device V.1.1, USBB-G socket
Ethernet 10 Base-T, RJ45socket, Modbus Slave TCP/IP

Rated operating conditions
Supply voltage 85...230...253 V a.c./d.c., 40...400 Hz a.c Power consumption ≤ 30 VA
Ambient temperature Work 0...23...50°C Storage:: - 20...60°C
Relative humidity < 70% Condensation inadmissible
Reaction against supply decays Data and device state preservation
powrót zasilania: Continuation of device work
Short term load (5s) 2 Un (max. 1000 V) 10 In
Casing protection grade From frontal side: IP 65 From terminal side: IP20
Safety requirements Installation category: II EN 61010-1
Pollution grade: 2
Maximum phase-to-earth
operating voltage		 From the measuring system, relays and supply: 500 V
For RS-485 and USB interfaces: 50 V

Measuring ranges and admissible basic conversion errors
Measuring quantity Range Basic error Remarks
Voltage U 57,73 / 100,0 V (Ku = 1)
230,0 / 400,0 V (Ku = 1)
400,0 / 690,0 V (Ku = 1)
400,0 kV (Ku ≠ 1)		 ± 0,2 % Ku = 1...4000
Current I 1,000 A (Ki = 1)
5,000 A (Ki = 1)
100,0 kA (Ki ≠ 1)		 ± 0,2 % Ki = 1...20000
Active power P
Mean active power Pav		 0,0… (-) 6000,0 W
999,00 MW (Ku ≠ 1, Ki ≠ 1)		 ± 0,5 %
Apparent power S 0,0…6000,0 VA 999,00 MVA (Ku ≠ 1, Ki ≠ 1) ± 0,5 %
Reactive power Q 0,0…(-) 6000,0 VA
999,00 MV (Ku ≠ 1, Ki ≠ 1)		 ± 0,5 %
Active power factor PF -1,000…0…1,000 ± 0,5 % PF = Power
Factor = P/S
Coefficient tφ -10,00…0…10,00 ± 1 % Ratio of active power to reactive
φ angle between U and I -180°...180° ± 0,5 % Evaluated from the power triangle
Frequency f 45,00...66,00 Hz ± 0,1 %
THD U, THD I
Harmonics U, I (up to 51)		 0…200,0 % 0…100,0 % ± 2 % Error in the range 10…120 % U,I
PST, PLT 0..20 ± 0,5 % in range of 0.05..35 Hz
Active energy EnP 0…(-) 99 999 999,9 kWh ± 0,5 %
Reactive energy EnQ 0… (-) 99 999 999,9 kvarh ± 0,5 %

where:
Ku voltage transformer ratio
Ki current transformer ratio
THD U total coefficient of voltage harmonic distortion
THD I total coefficient of current harmonic distortion,

ND1 analizator jakości sieci energetycznej zamówienie

EXAMPLE OF ORDER:
The code ND1 - 2 1 00 E 0 means:
ND1 - analyser of 3-phase power network
parameters of ND1 type
2 - current input: 5 A
1 - voltage input: 57.7/100 V
00 - standard version
E - English language
0 - without extra quality requirements.


* after agreeing with the manufacturer

NOTE:
Each ND1 analyser is equiped with 6 alarms (electromecanic relays), 4 analog outputs, 12 logic inputs and Ethernet interface..

Examples of measuring data presentation

Various forms of data display: ,

  • digital display,
  • analog view,
  • harmonic analysis,
  • bargraphs,
  • vector diagram of currents and voltages,
  • shape of current and voltage run (oscillo-scope),
  • watt-hour meter,
  • monitoring of binary states,
  • tables and others.

Manual and automatic switching between screens.

Software ND archiving
  • Tools to analyse collected data
  • Checking of data authenticity - verification of digital signature

  • Data presentation in tables and diagrams

ND1 analizator jakości sieci energetycznej wykres

  • Audit log, report of energy quality, report of electric energy consumption

analizator jakości sieci energetycznej ND1 audyt

Ethernet: www, ftp server

ND1 analizator jakości sieci energetycznej ethernet

portable housing

Obudowa przenośna ND1

Housing view from frontal side Housing view from rear view



Housing dimensions

ND1 wymiary

Accessories

1301-130-903 – wire MLS R, 2m, black
1301-130-902 – crocodile terminal AK-2B 2540, black

Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

  • Measurement and recording of over 300 electric energy quality parameters acc. to EN 50160 standard.
  • Operation in 3 or 4-wire, 3-phase, balanced or unbalanced
    power networks.
  • Analysis of current and voltage harmonics up to the 51 st.
  • Configurable archives of actual values and event recording.
  • Data archiving on a CompactFlash card - memory up to 4 GB.
  • Web Server, FTP Server.
  • Interfaces: RS-485 (Modbus Slave, Modbus Master).
    Ethernet 10 Base-T (Modbus TCP/IP Server) and USB.
  • Colour touch screen: LCD TFT 5.7”, 320 x 240 pixels.
  • Users friendly interface based on Windows®CE.
  • IP65 protection grade from the frontal side.
  • Recording of operator’s messages.
  • Synchronization of RTC clock with the NTP time server.

Example of application

Measurement, visualization and recording of over 300 parameters of 3-phase balanced or unbalanced power network

  • phase voltages: U1, U2, U3 and phase currents: I1, I2, I3
  • phase-to-phase voltages: U12, U23, U31
  • active phase powers: P1, P2, P3
  • reactive phase powers Q1, Q2, Q3
  • apparent phase powers: S1, S2, S3
  • active power factors: PF1, PF2, PF3
  • reactive/active power factors: tφ1, tφ2, tφ3
  • mean phase-to-phase voltage: US Umf
  • current in neutral wire and mean 3-phase current: IO, IS
  • active, reactive and apparent 3-phase power: P, Q, S
  • mean 3-phase power factors: PF, tφ
  • frequency f and frequency deviation
  • 15 minutes’ mean active power: PAV
  • active, reactive and apparent 3-phase energy: EnP, EnQ, EnS
  • THD for voltage and phase current
  • harmonicsfor current and phase voltage up to 51st!
  • storage of min and max values
  • recording of dips and voltage decays
  • monitoring of run function
  • voltage asymetry
  • flicker parameters: PST, PLT

Inputs
Kind of input Measuring range Parameters Basic error
Voltage input 57,7/100 V, 230/400 V
or 400/690 V		 0,05...1,2 Un ± 0,2%
Current input 1 A lub 5 A 0,005...1,2 In ± 0,2%
Logic input 0/5...24 V d.c. switch frequency up to 50 Hz

Outputs
Kind of output Properties
Analog output 4 programmable current outputs of 0/4...20 mA, load resistance < 500 Ω
Relay output 6 programmable electromagnetic relays, voltageless NOC contacts, load capacity: 250 V a.c./1 A a.c.
Output to supply object transducers 2 outputs of 24 V d.c./30 mA

Digital interfaces
Interface type Properties
RS-485 2 interfaces: MODBUS Slave and Master, baud rate: 300…256000 bit/s, transmission mode ASCII/RTU
USB Device V.1.1, USBB-G socket
Ethernet 10 Base-T, RJ45socket, Modbus Slave TCP/IP

Rated operating conditions
Supply voltage 85...230...253 V a.c./d.c., 40...400 Hz a.c Power consumption ≤ 30 VA
Ambient temperature Work 0...23...50°C Storage:: - 20...60°C
Relative humidity < 70% Condensation inadmissible
Reaction against supply decays Data and device state preservation
powrót zasilania: Continuation of device work
Short term load (5s) 2 Un (max. 1000 V) 10 In
Casing protection grade From frontal side: IP 65 From terminal side: IP20
Safety requirements Installation category: II EN 61010-1
Pollution grade: 2
Maximum phase-to-earth
operating voltage		 From the measuring system, relays and supply: 500 V
For RS-485 and USB interfaces: 50 V

Measuring ranges and admissible basic conversion errors
Measuring quantity Range Basic error Remarks
Voltage U 57,73 / 100,0 V (Ku = 1)
230,0 / 400,0 V (Ku = 1)
400,0 / 690,0 V (Ku = 1)
400,0 kV (Ku ≠ 1)		 ± 0,2 % Ku = 1...4000
Current I 1,000 A (Ki = 1)
5,000 A (Ki = 1)
100,0 kA (Ki ≠ 1)		 ± 0,2 % Ki = 1...20000
Active power P
Mean active power Pav		 0,0… (-) 6000,0 W
999,00 MW (Ku ≠ 1, Ki ≠ 1)		 ± 0,5 %
Apparent power S 0,0…6000,0 VA 999,00 MVA (Ku ≠ 1, Ki ≠ 1) ± 0,5 %
Reactive power Q 0,0…(-) 6000,0 VA
999,00 MV (Ku ≠ 1, Ki ≠ 1)		 ± 0,5 %
Active power factor PF -1,000…0…1,000 ± 0,5 % PF = Power
Factor = P/S
Coefficient tφ -10,00…0…10,00 ± 1 % Ratio of active power to reactive
φ angle between U and I -180°...180° ± 0,5 % Evaluated from the power triangle
Frequency f 45,00...66,00 Hz ± 0,1 %
THD U, THD I
Harmonics U, I (up to 51)		 0…200,0 % 0…100,0 % ± 2 % Error in the range 10…120 % U,I
PST, PLT 0..20 ± 0,5 % in range of 0.05..35 Hz
Active energy EnP 0…(-) 99 999 999,9 kWh ± 0,5 %
Reactive energy EnQ 0… (-) 99 999 999,9 kvarh ± 0,5 %

where:
Ku voltage transformer ratio
Ki current transformer ratio
THD U total coefficient of voltage harmonic distortion
THD I total coefficient of current harmonic distortion,

ND1 analizator jakości sieci energetycznej zamówienie

EXAMPLE OF ORDER:
The code ND1 - 2 1 00 E 0 means:
ND1 - analyser of 3-phase power network
parameters of ND1 type
2 - current input: 5 A
1 - voltage input: 57.7/100 V
00 - standard version
E - English language
0 - without extra quality requirements.


* after agreeing with the manufacturer

NOTE:
Each ND1 analyser is equiped with 6 alarms (electromecanic relays), 4 analog outputs, 12 logic inputs and Ethernet interface..

Examples of measuring data presentation

Various forms of data display: ,

  • digital display,
  • analog view,
  • harmonic analysis,
  • bargraphs,
  • vector diagram of currents and voltages,
  • shape of current and voltage run (oscillo-scope),
  • watt-hour meter,
  • monitoring of binary states,
  • tables and others.

Manual and automatic switching between screens.

Software ND archiving
  • Tools to analyse collected data
  • Checking of data authenticity - verification of digital signature

  • Data presentation in tables and diagrams

ND1 analizator jakości sieci energetycznej wykres

  • Audit log, report of energy quality, report of electric energy consumption

analizator jakości sieci energetycznej ND1 audyt

Ethernet: www, ftp server

ND1 analizator jakości sieci energetycznej ethernet

portable housing

Obudowa przenośna ND1

Housing view from frontal side Housing view from rear view



Housing dimensions

ND1 wymiary

Accessories

1301-130-903 – wire MLS R, 2m, black
1301-130-902 – crocodile terminal AK-2B 2540, black
