Hersteller: ELEN

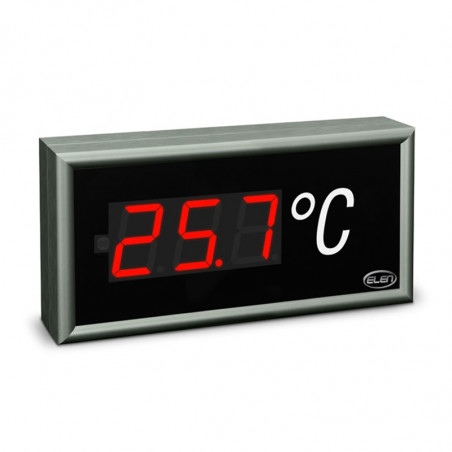

Ndu serie.

The NDU types have a frame made of anodised Al profile, and they offer an aesthetic solution while maintaining other properties of the NDI series (except flexibly mounted
electronics - see the technical specification).

Technical data
  DAC/NDU 57/x DAC/NDU 100/x
Height of characters 57 mm 100 mm
Number of digits 3 (NDU 3/...), 4 (NDU Al...), 5 (NDU 5/...)
Format 8.8.8. / 8.8.8.8. / 8.8.8.8.8.
Readability range 23 m 40 m
Type of display
elements		 7-segment superbright LEDs, luminious intensity ca. 30 mcd, viewing angle 120°
Communication interface Seriall RS 232 / RS 485 with galvanic separation (switchable inside the device), passive input BCD 24V
with galvanic separation, Ethernet, LonWorks® FTT-10A, Profibus, analog inputs (0-10V, 0-20 mA, 4-
20mA, counter 1 kHz), call for other inputs
Communication protocol Elen, Schenck DDP 8850, DDP 8861 (Disomat B, Disomat F), Intecont plus, Orbit Controls, LonTalk® (LonMark® 3.0), and other on demand
Power supply, power input 230 V/ 50Hz
Power 5.5/6.3/7.0 VA 6.8/8.0/9.2 VA
Class of protection IP43
Operational temperature -20 + +40°C
Mains connector Binder 714
Data connector Binder 713
