Hersteller: NILAR

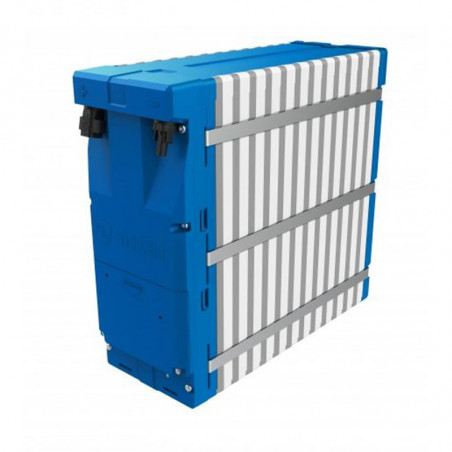

Nira EC-Batteriepacker

The Nilar EC (Energy Compact) is the only commercially available bi-polar Hydride battery. With the patented Nilar bi-polar design, the Nilar EC brings you a safer, greener, more reliable and cost-efficient energy storage solution. Thanks to the ruggedness of the Nilar Hydride® battery design, Nilar EC delivers a stable performance curve throughout the life of the battery. With an operating temperature range covering from -20°C to +50°C, you can rely on the battery to perform in various conditions. The Circular Economy philosophy has been a central part of the R[&]D process for Nilar EC. Additionally, the newly patented module cooling solution ensures stable temperature throughout the whole pack.


Benefits in brief

  • Safer than ”safe”*
  • Environmentally-friendly
  • Fully recyclable
  • Long service life
  • Wide temperature range
  • Maintenance free


DOWNLOAD THE CATALOGUE

* Nilar provides battery systems that are safer than many so called ”safe” solutions available on the market. The Nilar battery system contains water based, non-flammable electrolyte. It does not generate short circuit current/failure/conditions even under low temperature charging. The electrodes cannot ignite spontaneously and will not cause heat propagation between modules. That’s why we argue that we are safer than ”safe”.


Configuration Depth [mm]
EC-96V-10Ah 248
EC-108V-10Ah 273
EC-120V-10Ah 293
EC-144V-10Ah 337



Battery pack specification


Electrical characteristics 96V 108V 120V 144V Unit
Capacity 10 10 10 10 Ah
Energy 0,96 1,08 1,2 1,44 kWh
Cycles 2000 2000 2000 2000 cycles
Nominal voltage 96 108 120 144 VDC
Max continuous charge/discharge 3 C 3 C 3 C 3 C C-rate
Max charge/discharge 7 C 7 C 7 C 7 C C-rate
Gravimetric energy density 40,7 41,2 41,7 42,4 Wh/kg
Volumetric energy density 122,1 124,4 126,3 129,3 Wh/l
Mechanical characteristics
Dimensions [DxHxW] 248 x 306 x 127 273 x 306 x 127 293 x 306 x 127 337 x 306 x 127 mm
Weight 24 26 29 34 kg
Protection class
Battery pack IP54 IP54 IP54 IP54 IP
Integrated Monitoring Unitca IP21 IP21 IP21 IP21 IP
Operating conditions
Ambient temperature range -20 to +50 -20 to +50 -20 to +50 -20 to +50 °C
Service life 20+ 20+ 20+ 20+ years
