Hersteller: CAMDENBOSS

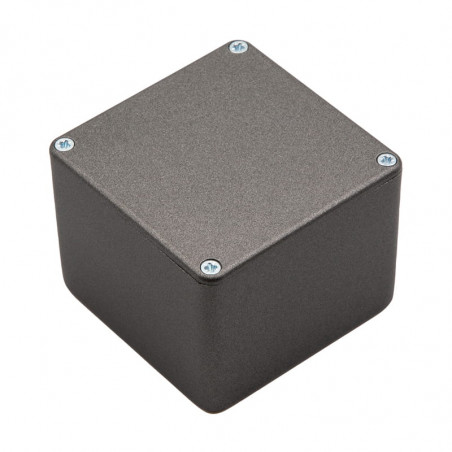

Universal Housing Series 2000 - EMV

A range of enclosures with conductive coating for enhanced electro-magnetic compatibility (EMC).

  • Lid and base moulded in ABS
  • Graphite grey paint finish
  • Conductive coating
  • Brass inserts in base for repetitive removal of the lid (*except for 2000, 2007 or 2008 sizes)
  • Excellent properties for machining
  • Integral mounting guides to accept 1.6mm PCBs
  • 2000 series has been designed to meet the requirements of IP54

Variants

Product No. Screws Lenght
[mm]		 Width
[mm]		 Height
[mm]
BIM2008/18-EMI/RFI No2 x 5/16 CSK self tapping x 4 55 55 42
BIM2000/10-EMI/RFI No2 x 5/16 CSK self tapping x 4 75 50 27
BIM2001/11-EMI/RFI M3 x 10 CSK pozi screws x 4 85 56 39
BIM2002/12-EMI/RFI M3 x 10 CSK pozi screws x 4 100 50 25
BIM2003/13-EMI/RFI M3 x 10 CSK pozi screws x 4 112 62 31
BIM2007/17-EMI/RFI No2 x 5/16 CSK self tapping x 4 112 62 31
BIM2004/14-EMI/RFI M3 x 10 CSK pozi screws x 4 120 65 40
BIM2005/15-EMI/RFI M3 x 10 CSK pozi screws x 4 150 80 50
BIM2006/16-EMI/RFI M3 x 10 CSK pozi screws x 6 190 110 60
BIM2009/19-EMI/RFI M3 x 10 CSK pozi screws x 8 250 200 65
