Hersteller: FRER

TDC ... / TDA ... - aktuelle Transformatoren für die Zusammenarbeit mit den laufenden Stromrelais

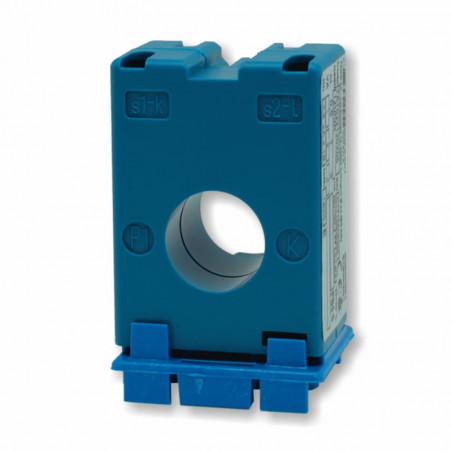

TDC…/TDA… - transformer for earth leakage relays

The series TD toroidal transformers must be installed with all the active conductors of a single or three-phase system (phases and neutral if distributed) passing inside the core; the protection conductor (PE) must pass outside the core. The connection with the earth leakage relay must be as short as possible, carried out preferably with shielded cable (the shield must be connected to earth at one end only) and kept far away from other power cables.


Technical data

Thermoplastic material UL 90-V0
Operating frequency 47-63Hz
Insulation 2,5kV 50Hz, 1 min.
Protection degree IP20
Continuous overload 1000A
Thermal overload (1s) 40kA
Operating temperature 0…+50˚C U.R./R.H. <90% n.c.
Storage temperature -20…+70˚C
Connections Screw, max 1,6mm2


Kode Nucleo A B C D E F G H I kg

TDC022

 Chiuso dimensions: see fig. 1 0,2

TDC032

 dimensions: see fig. 2 0,3

TDC035

 35 93 73 92 100   40 6 28 0,2

TDC060

 60 122 98 116 125   55 6 28 0,2

TDC080

 80 142 118 136 146   65 6 38 0,4

TDC110

 110 168 148 166 178   78 6 28 0,5

TDC160

 160 275 255 265 275   130 8,5 45 1,2

TDC210

 210 325 305 310 325   155 8,5 45 2,4

TDC300

 300 415 390           40 4,7

TDC321

 fig. 3 -

TDC350

 350 463 438           40 5,5

TDC471

 fig. 4 -

TDA110

 Aperto 110 225 205 220 235 70 105 6,5 40 1,3

TDA160

 160 275 255 265 275 75 130 8,5 45 1,3

TDA210

 210 325 305 310 325 75 155 8,5 45 2,4


Dimensions

Fig. 1: TDC022 - dimensions

Fig. 2: TDC032 - dimensions

Fig. 3: TDC321 - dimensions

Fig. 4: TDC471 - dimensions

Fig. 5
