Hersteller: M-SYSTEM

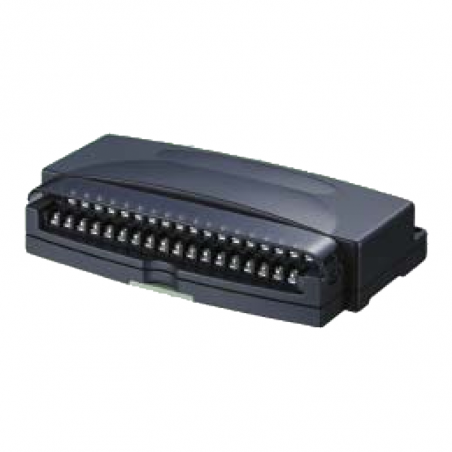

Schreiber der R1M-Serie

Properties
- Industrial PC recorder
- Easy to enlarge with Modbus RTU
- Data exported to calculation sheets
- Software and RS232 cable delivered with device

Technical data

Power supply 85..264Vac, 47..66Hz, ~10VA; 24Vdc ±10%, 7W
Operation temperature -5..+60°C
Humidity: 30..90%Rh
Assembly:   surface or for DIN bus
Dimensions:   175x115x40mm
Weight:   400g.
Communication RS-232, RS-485
Insulation:   between inputs, outputs, RS-232, RS-485 and power supply

Catalogue number

Execution
A1: 32 logic inputs
J3: 8 resistance or potentiometer inputs
GH2: 16 DC and thermocouple inputs
P4: 4 counter input, 8 logic inputs and outputs
D1: 32 logic outputs
Napięcie zasilania:
M2: 100..240Vac
R: 24Vdc

Dimensions mm (inch)
Example configuration (MSR128 software):
