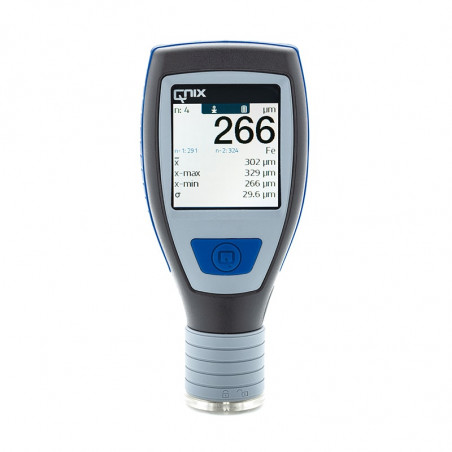

QNix 5500 Schichtdickenmessgerät

Safety by precision and trueness

For valid results in quality assurance

• High measuring trueness over the entire range
• High repeatability of measured results
• Temperature compensation directly in the sensor

Robustness and resistance

For long and reliable use, even under harsh conditions

• Fiberglass reinforced, 5 piece casing with IP65 dust and splash water protection
• Three layer protection to absorb shocks
• LCD glass providing resistance against scratches and chemicals (Level H6)
• Stainless steel probe with dust protection membrane (IP65)

Time saving by ergonomics

Fast and fatigue proof work even with continuous use

• Luminosity IPS-LCD, 2“, colour, 350 cd/m2, reading angle 70°
• Automatic flip display 0°, 90°, 180°, 270°
• Low centre of gravity with large contact surface for precise measuring

Flexibility and expandability

Future-proof by changeable probes

• Gauge body suitable for Fe-, NFe- and dual-probes
• Integrated probe and cable probe available in one device
• Increased readiness for use by quick change of probes
