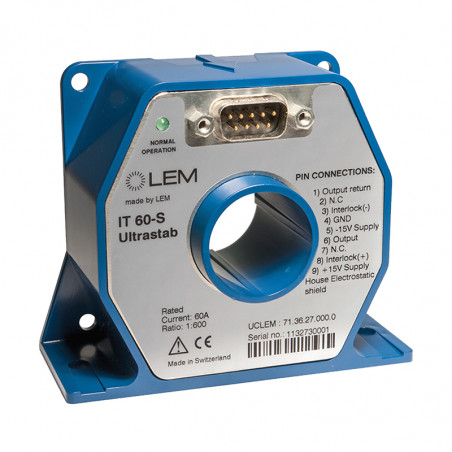

Precise current transducers are dedicated for electronic DC, AC, pulse voltage measurements, operating in the range from 12.5 A to even 24 kA. They are available in versions for a PCB and with a hole for the cable. Excellent linearity throughout the range means that they can be successfully used in laboratory, medical and any other applications where high measurement precision is needed.

I_PN = 12.5 A ... 600 A

Type		ITN 12-P	IT 60-S	IT 200-S	ITB 300-S	IT 400-S	ITL 900-T	ITN 600-S
IPN [ADC]		12.5	60	200	300	400	400	600
IPN [ARMS]		8.8	42	141	300	282	400	424
IP [A]		± 12.5	±60	±200	±450	±400	±900	±600
Technology		Fluxgate IT
UC [V]		±15	±15	± 15	±15	±15	± 15	± 15
Vout/Iout @IPN		50 mA	100 mA	200 mA	150 mA	200 mA	266.66 mA	400 mA
BW [kHz] j)		DC-500 (3dB)	DC-800 (3dB)	DC-500 (3dB)	DC-100 (3dB)	DC-500 (3dB)	DC-200 m) (3dB)	DC-300 (3dB)
EL Linearity (ppm) i) k)		4	20	3	10	3	1	1.5
IOE/VOE Offset (ppm) i) k)		500	250	80	666	40	10	15
Noise (RMS) (ppm) (DC-100Hz) k)		0.5	1	1	N/A	0.5	0.017 (0.125Hz-1 kHz)	0.3
Noise (RMS) (ppm) (DC-50kHz) k)		10 (DC-100kHz)	15	15	N/A	8	0.006 (1 kHz-30kHz)	15 (DC-100kHz)
TCICE/ TCVCE (ppm/K)k)		2	2.5	2	6.66	1	0.3	0.5
TA [oC]		10...+45	10...+50	10...+50	-40...+85	10...+50	10...+50	10...+50
Mounting	PCB	•
	On-board Panel		•	•	•	•	•	•
Busbar Aperture Diameter (mm)		Integrated	26	26	21.5	26	Integrated busbar 19 mm diameter	30
Features		Metal housing for high immunity against external influence
Dimensions

I_PN = 700 A ... 4000 A

Type	IT 700-S	IT 700-SPR	IT 700-SB	ITN 900-S	IT 1000-S/SP1	ITL 4000-S
IPN [ADC]	700	700	700	900	1000	4000
IPN [ARMS]	495	495	495	636	707	4000
IP [A]	± 700	± 700	± 700	±900	±1000	± 12000
Technology	Fluxgate IT
UC [V]	± 15	± 15	± 15	±15	±15	±24
Vout/Iout @IPN	400 mA	400 mA	10 V	600 mA	1 A	1.6 A
BW [kHz] j)	DC-100 (3dB)	DC-100 (3dB)	DC-100 (3dB)	DC-300 (3dB)	DC-500 (3dB)	DC-50 n) (1dB)
ELLinearity (ppm) i) k)	3	3	30	1	3	100
IOE/VOE Offset (ppm) i) k)	50	50	60	10	50	62.5
Noise (RMS) (ppm) (DC-100Hz) k)	0.5	1	2	0.2	N/A	125 (0.1 Hz-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	6	16	10	10	6	125 (0.1Hz-10kHz)
TCICE /TCVCE (ppm/K)k)	0.5	0.5	4	0.3	0.5	1.38
TA [oC]	10...+50	10...+50	10...+50	10...+50	10...+50	-40...+70
Mounting On-board Panel	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	30	30	30	30	30	268
Features		Programmable from 80 A in step of 10 A			High bandwidth
Dimensions

I_PN = 600 A ... 5000 A

Type	ITZ 600-SPR	ITZ 600-SBPR	ITZ 2000-S	ITZ 2000-SB	ITZ 2000-SPR	ITZ 2000-SBPR	IT 5000-S
IPN [ADC]	600	600	2000	2000	2000	2000	5000
IPN [ARMS]	424	424	1414	1414	1414	1414	3535
IP [A]	±600	±600	±2000	±2000	±2000	±2000	±5000
Technology	Fluxgate IT
UC [V]	100-240 VAC 50/60 Hz
Vout//Iout @IPN	1 A	10 V	2 A	10 V	1 A	10 V	2 A
BW [kHz] j)	DC-500 o) (3dB)	DC-300 o) (3dB)	DC-300 o) (3dB)	DC-300 o) (3dB)	DC-80 o) (3dB)	DC-80 o) (3dB)	DC-80 o) (3dB)
EL Linearity (ppm) i) k)	1	10	2	11	2	11	3
IOE/VOE Offset (ppm) i) k)	2	3	2	3	2	3	2
Noise (RMS) (ppm) (DC-100Hz) k)	11 (DC-10kHz)	8 (DC-10kHz)	3 (DC-10kHz)	3 (DC-10kHz)	7 (DC-10kHz)	2 (DC-10kHz)	2.5 (DC-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	28 (DC-100kHz)	60 (DC-100kHz)	27 (DC-100kHz)	60 (DC-100kHz)	42 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)
TCICE /TCVCE (ppm/K)k)	0.1	0.3	0.1	0.3	0.1	0.3	0.1
TA [oC]	0...+55 Head +10…+40 Elec.
Mounting - Measuring head + 19” rack electronic	•	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	25.4	25.4	50	50	50	50	140.3
Features	Programmable by steps o 20 A from 40 A to 620 A	Programmable by steps of 20 A from 40 A to 620 A			Programmable by steps of 125 A from 125 A to 2000 A	Programmable by steps of 125 A from 125 A to 2000 A
Dimensions

I_PN = 5000 A ... 24000 A

Type	ITZ 5000-SB	ITZ 10000-S	ITZ 10000-SB	ITZ 16000-S	ITZ 16000-SB	ITZ 24000-S
IPN [ADC]	5000	10000	10000	16000	16000	24000
IPN [ARMS]	3535	7070	7070	11314	11314	16970
IP [A]	±5000	±10000	±10000	±16000	±16000	± 24000
Technology	Fluxgate IT
UC [V]	100-240 VAC 50/60 Hz
Vout/Iout @IPN	10 V	2 A	10 V	2 A	10 V	3 A
BW [kHz] j)	DC-80 o) (3dB)	DC-20o) (3d B)	DC-20 o) (3d B)	DC-3o) (3dB)	DC-3o) (3dB)	DC-2 o) (3dB)
EL Linearity (ppm) i) k)	11	5	12	6	12	6
IOE/VOE Offset (ppm) i) k)	3	2	3	2	3	2
Noise (RMS) (ppm) (DC-100Hz) k)	2.5 (DC-10kHz)	8 ( DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)	8 (DC-10kHz)
Noise (RMS) (ppm) (DC-50kHz) k)	60 (DC-100kHz)	20 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)	60 (DC-100kHz)	20 (DC-100kHz)
TCICE /TCVCE (ppm/K)k)	0.3	0.1	0.3	0.1	0.3	0.1
TA [oC]	0...+55 Head +10…+40 Elec.
Mounting - Measuring head + 19” rack electronic	•	•	•	•	•	•
Busbar Aperture Diameter (mm)	140.3	100	100	150.3	150.3	150.3
Dimensions

Notes:
ⁱ⁾ Linearity measured at DC
^j)Bandwidth is measured under small signal conditions - amplitude of 0.5% I _PN (DC)
^k) All ppm figures refer to V_OUT or I_OUT@ I_PN(DC) except for ITL 900-T where it refers to I_OUT = 600 mA
^l)Electrical offset current + self magnetization + effect of earth magnetic field @ T_A +25 °C
^m) Small signal 5% of I_PN(DC), 32 A_RMS
ⁿ⁾ Small signal40A _RMS
^o) Bandwidth is measured under small signal conditions - amplitude of 1% I_PN(DC)
N/A – Not Available
