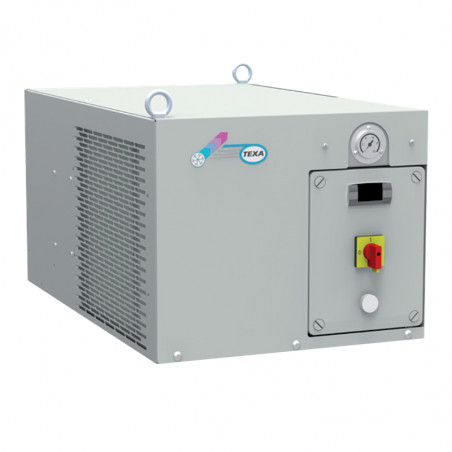

![Wasserkühler TCWD4-G8 Wasserkühler TCWD4-G8](https://www.dacpol.eu/7216-large_default/wasserkuhler-tcwd4-g8.jpg)
![Wasserkühler TCWD4-G8 Wasserkühler TCWD4-G8](https://www.dacpol.eu/7216-large_default/wasserkuhler-tcwd4-g8.jpg)
Sie müssen eingeloggt sein
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Fotos dienen nur zu Informationszwecken.
please use latin characters
Cooling power range | 41400 - 75200 W |
Casing | Steel, covered with polyester, colour RAL 7035, casing is removable. |
Compressor | Hermetically closed compressor with thermal protection and oil level indicator. |
Cooling circuit | Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R410a. |
Evaporator | Plate heat exchanger with icing protection and differential pressure switch. |
Condenser | High efficient, spiral exchanger with ribs, protected with steel net. |
Axial fan | Protected thermally and with metal net. |
Hydraulic circuit | Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor. |
Temperature control | Done by the microprocessor controller TX300, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off. |
Dimensions
Technical data
Type | TCW D4 | TCW E0 | TCW E4 | TCW F7 | TCW G8 |
---|---|---|---|---|---|
Nominal cooling power [W] | 41400 | 46100 | 56600 | 65600 | 75200 |
Ambient temperature range [°C] | +15 ÷ +45 | ||||
Water temperature range [°C] | +8 ÷ +25 | ||||
Cooling liquid | R410A | ||||
Power supply [V/Hz] | 400V 3f / 50 | ||||
Power [W] | 22400 | 24300 | 27800 | 31500 | 34900 |
Pump | |||||
Water flow [l/min] | 115,0/210,0 | 130,0/210,0 | 160,0/210,0 | 185,0/400,0 | 215/400,0 |
Water pressure [bar] | 3,5 | 3,4 | 3,2 | 3,2 | 3,0 |
Container capacity [l] | 240,0 | ||||
Water terminal [BPS] | 2” | 2” | 2” | 2" 1/2 | 2" 1/2 |
Weight [kg] | 430,0 | 460,0 | 470,0 | 500,0 | 550,0 |
