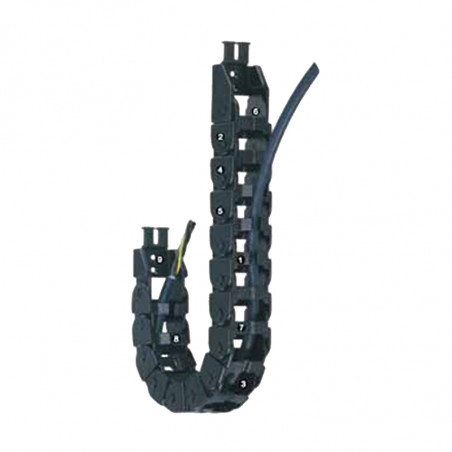

Kabelführungen Serie E08 - Z08
  • Kabelführungen Serie E08 - Z08

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Igus

Kabelführungen Serie E08 - Z08

Features:
  • Very easy to fill - ideal for harnessed cable assemblies
  • Small pitch for low-noise, smooth operation
  • Limited torsion tolerance
  • Light Weight
  • The patented push-button principle holds the links together
  • Cable-friendly interior "E" Series features split crossbar along the outer radius
  • "Z" Series features split crossbar along the inner radius
  • Integrated strain relief option

easy chain E08 easy chain Z08
Series E08 Series Z08

Names Width Bi [mm] Width Ba [mm] Bending radius R [mm] Snap-open along radius
E08.10.028.0 10 18,2 28 outer
E08.10.038.0 10 18,2 38 outer
E08.10.048.0 10 18,2 48 outer
E08.16.028.0 16 24,2 28 outer
E08.16.038.0 16 24,2 38 outer
E08.16.048.0 16 24,2 48 outer
E08.20.028.0 20 28,2 28 outer
E08.20.038.0 20 28,2 38 outer
E08.20.048.0 20 28,2 48 outer
E08.30.028.0 30 38,2 28 outer
E08.30.038.0 30 38,2 38 outer
E08.30.048.0 30 38,2 48 outer
E08.40.028.0 40 48,2 28 outer
E08.40.038.0 40 48,2 38 outer
E08.40.048.0 40 48,2 48 outer
E08.50.028.0 50 58,2 28 outer
E08.50.038.0 50 58,2 38 outer
E08.50.048.0 50 58,2 48 outer
Z08.10.028.0 10 18,2 28 inner
Z08.10.038.0 10 18,2 38 inner
Z08.10.048.0 10 18,2 48 inner
Z08.16.028.0 16 24,2 28 inner
Z08.16.038.0 16 24,2 38 inner
Z08.16.048.0 16 24,2 48 inner
Z08.20.028.0 20 28,2 28 inner
Z08.20.038.0 20 28,2 38 inner
Z08.20.048.0 20 28,2 48 inner
Z08.30.028.0 30 38,2 28 inner
Z08.30.038.0 30 38,2 38 inner
Z08.30.048.0 30 38,2 48 inner
Z08.40.028.0 40 48,2 28 inner
Z08.40.038.0 40 48,2 38 inner
Z08.40.048.0 40 48,2 48 inner
Z08.50.028.0 50 58,2 28 inner
Z08.50.038.0 50 58,2 38 inner
Z08.50.048.0 50 58,2 48 inner


Accessories

easy chain 080.30.12-080.50.1, 080.10.12-080.20.12
080.10.12-080.20.12 - center bores only
080.30.12-080.50.12 - all bores

Series Part No. full set with tiewrap plates Part No. full set without tiewrap plates Number
of teeth		 Dim. A
[mm]		 Dim. B
[mm]
E08.10. 080.10.12 PZ 080.10.12  1 - 18,2
E08.16. 080.16.12 PZ 080.16.12  2 - 24,2
E08.20. 080.20.12 PZ 080.20.12  2 - 28,2
E08.30. 080.30.12 PZ 080.30.12  3 22 38,2
E08.40. 080.40.12 PZ 080.40.12  4 32 48,2
E08.50. 080.50.12 PZ 080.50.12  5 42 58,2
Z08.10. 080.10.12 PZ 080.10.12  1 - 18,2
Z08.16. 080.16.12 PZ 080.16.12  2 - 24,2
Z08.20. 080.20.12 PZ 080.20.12  2 - 28,2
Z08.30. 080.30.12 PZ 080.30.12  3 22 38,2
Z08.40. 080.40.12 PZ 080.40.12  4 32 48,2
Z08.50. 080.50.12 PZ 080.50.12  5 42 58,2
