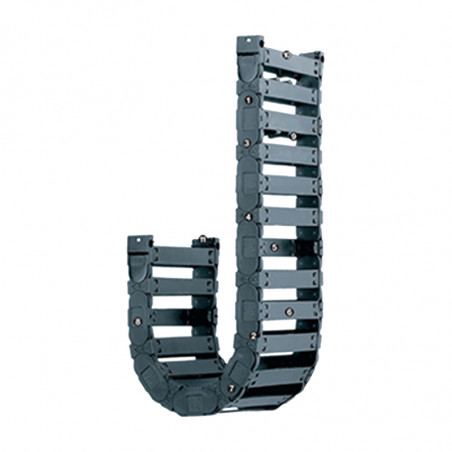

Kabelführungen E4.21-Serie

Features:
  • Straight run due to inner-/outer-link design
  • Low-noise operation due to integrated brake on the radial stop dogs
  • The tongue and groove design facilitates very high stiffness and load capacity in the presence of shear forces
  • 15% more tensile strength (compared to the best old Series E4), extended unsupported length due to improved stop dog system and vertical radial stop dogs
  • Crossbars on e-chains® removable on both sides
  • Cable-friendly, wide polymer crossbars
  • Optimized gliding surfaces – long service-life
  • Smooth outer contour, reduced dirt adhesion
  • High-variety interior separation
  • Strain relief possible with strain relief crossbar on the mounting bracket
  • Pivoting mounting brackets with circumferential fastening option
  • Alternatively available with reversed/two-sided bending radii (RBR version)


E4.1 Series E4.21


Name Width Bi
[mm]		 Width Ba
[mm]		 Bending radius R
[mm]		 Weight
[kg/m]
E4.21.030.038.0 30 44 38 0,6
E4.21.030.048.0 30 44 48 0,6
E4.21.030.063.0 30 44 63 0,6
E4.21.030.075.0 30 44 75 0,6
E4.21.030.100.0 30 44 100 0,6
E4.21.030.150.0 30 44 150 0,6
E4.21.030.200.0 30 44 200 0,6
E4.21.040.038.0 40 54 38 0,64
E4.21.040.048.0 40 54 48 0,64
E4.21.040.063.0 40 54 63 0,64
E4.21.040.075.0 40 54 75 0,64
E4.21.040.100.0 40 54 100 0,64
E4.21.040.150.0 40 54 150 0,64
E4.21.040.200.0 40 54 200 0,64
E4.21.050.038.0 50 64 38 0,67
E4.21.050.048.0 50 64 48 0,67
E4.21.050.063.0 50 64 63 0,67
E4.21.050.075.0 50 64 75 0,67
E4.21.050.100.0 50 64 100 0,67
E4.21.050.150.0 50 64 150 0,67
E4.21.050.200.0 50 64 200 0,67
E4.21.060.038.0 60 74 38 0,71
E4.21.060.048.0 60 74 48 0,71
E4.21.060.063.0 60 74 63 0,71
E4.21.060.075.0 60 74 75 0,71
E4.21.060.100.0 60 74 100 0,71
E4.21.060.150.0 60 74 150 0,71
E4.21.060.200.0 60 74 200 0,71
E4.21.070.038.0 70 84 38 0,74
E4.21.070.048.0 70 84 48 0,74
E4.21.070.063.0 70 84 63 0,74
E4.21.070.075.0 70 84 75 0,74
E4.21.070.100.0 70 84 100 0,74
E4.21.070.150.0 70 84 150 0,74
E4.21.070.200.0 70 84 200 0,74
E4.21.080.038.0 80 94 38 0,78
E4.21.080.048.0 80 94 48 0,78
E4.21.080.063.0 80 94 63 0,78
E4.21.080.075.0 80 94 75 0,78
E4.21.080.100.0 80 94 100 0,78
E4.21.080.150.0 80 94 150 0,78
E4.21.080.200.0 80 94 200 0,78
E4.21.090.038.0 90 104 38 0,82
E4.21.090.048.0 90 104 48 0,82
E4.21.090.063.0 90 104 63 0,82
E4.21.090.075.0 90 104 75 0,82
E4.21.090.100.0 90 104 100 0,82
E4.21.090.150.0 90 104 150 0,82
E4.21.090.200.0 90 104 200 0,82
E4.21.100.038.0 100 114 38 0,85
E4.21.100.048.0 100 114 48 0,85
E4.21.100.063.0 100 114 63 0,85
E4.21.100.075.0 100 114 75 0,85
E4.21.100.100.0 100 114 100 0,85
E4.21.100.150.0 100 114 150 0,85
E4.21.100.200.0 100 114 200 0,85
E4.21.110.038.0 110 124 38 0,89
E4.21.110.048.0 110 124 48 0,89
E4.21.110.063.0 110 124 63 0,89
E4.21.110.075.0 110 124 75 0,89
E4.21.110.100.0 110 124 100 0,89
E4.21.110.150.0 110 124 150 0,89
E4.21.110.200.0 110 124 200 0,89
E4.21.120.038.0 120 134 38 0,92
E4.21.120.048.0 120 134 48 0,92
E4.21.120.063.0 120 134 63 0,92
E4.21.120.075.0 120 134 75 0,92
E4.21.120.100.0 120 134 100 0,92
E4.21.120.150.0 120 134 150 0,92
E4.21.120.200.0 120 134 200 0,92


Accessories
Fixed end
E4.210...1.1		 Moving end
E4.210...1.2
prowadniki kablowe E4.210...1.1 E4.210...1.2 Moving end
E4.210...1.2
prowadniki kablowe E4.210...1.2
Fixed end
E4.210...1.1


Series Part No. full set
pivoting 		 Dimension Bi
[mm]
E4.21.030. E4.210.030.1.12 30
E4.21.040. E4.210.040.1.12 40
E4.21.050. E4.210.050.1.12 50
E4.21.060. E4.210.060.1.12 60
E4.21.070. E4.210.070.1.12 70
E4.21.080. E4.210.080.1.12 80
E4.21.090. E4.210.090.1.12 90
E4.21.100. E4.210.100.1.12 100
E4.21.110. E4.210.110.1.12 110
E4.21.120. E4.210.120.1.12 120
