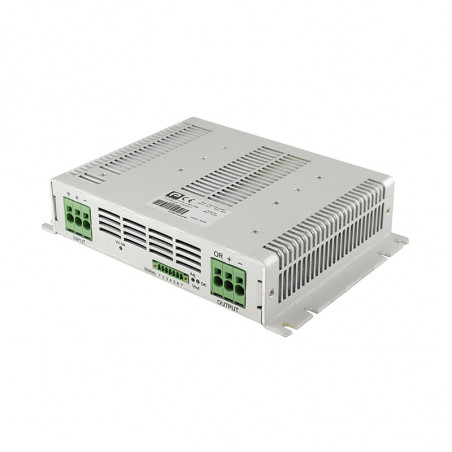

Premium CRS-500-Serie DC / DC-Wandler

DC/DC Converters company Premium series CRS-500

The CRS-500 are high power DC/DC converters for industrial environments which require the highest performance and reliability. All models are also offered to fit in railway applications that need to comply with the EN50155 standard.
The CRS-500 are single output (24V, 48V and 110V) converters of 500W with a wide input voltage range (14,4-144V) and efficiency of up to 92%. All models are designed to work in temperatures of up to 70ºC and refrigeration is carried out through natural convection. This series has other options available, such as ORing FET for redundant operatio. Many options are available, such as an output ORing FET forredundant operation and protections against overloads and short-circuits, output over-voltage, reverse input voltage, input under-voltage and input over-current. When a converter input undervoltage condition occurs, the converter is disabled, thus preventing the battery from becoming totally discharged.
The CRS-500 DC/DC converters can be mounted in chassis by means of mounting bracket holes, DIN rail or into a 6U subrack and cooling is carried out through natural convection.

KEY FEATURES
  • Oring FET option
  • High input-output isolation
  • Adjustable output voltage
  • Remote sensing
  • Remote inhibit
  • Input [&] Ouput OK LEDs
  • Output failure alarm
  • Input reverse polarity protection
  • Railway version EN50155
  • Fire and smoke: EN45545-2 approved
  • Efficiency up to 92%
PRODUCT WARRANTY
  • 3 years for Industrial version
  • 5 years for Railway version
ACCESSORIES
  • Signals female connector
  • DIN rail mounting kit
  • Subrack guiding plates
  • 19″rackmount tray kit (2U)
Models24Vin
14,4V... 30V		36Vin
21,6V ...45V		48 Vin
28,8V... 60V		72Vin
43,2V... 90V		110Vin
66V... 144V
24Vout

CRS-500-6455

500W 88%

CRS-500-6467

500W 88%

CRS-500-6458

500W 91%

CRS-500-6461

500W 91%

CRS-500-6464

500W 91%
48Vout

CRS-500-6456

500W 89%

CRS-500-6468

500W 89%

CRS-500-6459

500W 91%

CRS-500-6462

500W 91%

CRS-500-6465

500W 92%
