Hersteller: WeSiTec eK

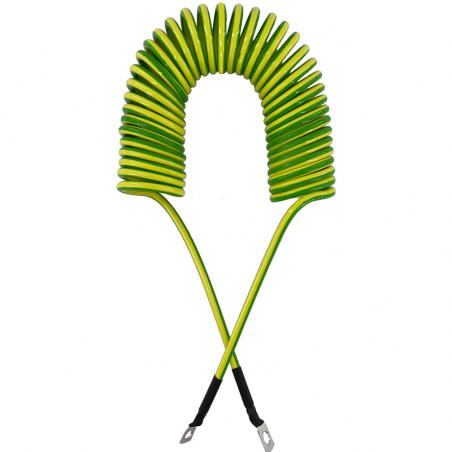

Spiral-, Stahl (Single) Draht

For use in hazardous areas according to DIN EN 60079-14

General Information
The steel spiral cables from WeSiTec offer superior mechanical strength. The cable withstands continuous daily use and is extremely resistant to acids, alkalis, mineral oils, greases and other chemicals due to its cable coating. The spiral cables meet all requirements of the standards DIN EN 60079-0 and DIN EN 60079-14 and may be used accordingly in potentially explosive atmospheres. The spiral cables are free of silicone.

Technical Data

Cable type: ST-Li2Y
Cable color: green or green/yellow
Cross section: 4 mm 2
Wire type: Steel cable
Ambient temperature: -40°C...+80°C
Side A + B: each 200 mm axial

The cable ends can be assembled with eyelets at no extra charge.
