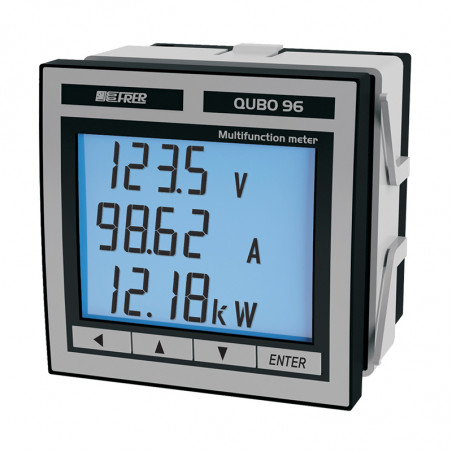

Multifunction network analyzer for DC systems. The voltage inputs is directly wired to the line, while the input proportional to the current is derived from shunt. By means of a simple programming procedure is possible to set the value of the primary current.
Rated data
Display | Backlit LCD |
---|---|
Digits height | 13.5mm |
Max. indication | 4 digits |
Decimal point position | Automatic |
Adjustable backlight | 5 levels |
Readings update | <0.5s |
Basic accuracy | ±0.2% |
Nominal input current | Shunt 60mV |
Shunt ratio (max primary) | 15kA |
Input range | 10-120% UN, 5-120% IN |
Continuous overload | 2 x IN, 1.2 x UN |
Short-term overload | 20 x IN, 2 x UN (300msec.) |
Current circutis consumption | <0.5VA |
Voltage circutis consumption | <0.5VA |
Operating temperature | 0…23…50°C |
Storage temperature | -30…70°C |
Housing material | UL 94-V0 |
Protection for housing | IP50 |
Protection for terminasl | IP20 |
Galvanic insulation | In./out. |
Installation category | III, 300V, P.D. 2 |
Dimensions
Code
QUBO 96 DC | Q96C3LX60 | -- | - | - | - | |
---|---|---|---|---|---|---|
Communication | RS485 Modbus | M | ||||
Modbus TCP + WebServer + internal memory | E | |||||
Modbus TCP + WebServer + Gateway | G | |||||
IEC61850 | I | |||||
Profibus DP V0 | P | |||||
Johnson Controls N2 open | J | |||||
Input voltage | 12V | 12 | ||||
24V | 24 | |||||
48V | 48 | |||||
60V | 60 | |||||
110V | C1 | |||||
220V | D2 | |||||
400V | 4C | |||||
600V | 6C | |||||
Aux. power supply | 220-240V AC | 2 | ||||
20-60V AC/DC | L | |||||
80-260V AC/DC | H | |||||
Option | None | - | ||||
2 outputs alarm/pulses | U |
Measured value
Additional technical data
Energy counting | |
---|---|
Number of digits | 10 |
Maximum counting | 2x109 |
Accuracy class | 1 (kWh), 2 (kvarh) |
Bidirectionality | Tak |
Alarm outputs (photo-mos 50V, 100mA) | |
Activation delay setting | Nastawne 0…999s |
Programmability | Varibal, value, direction |
Pulse output | |
Programmability | Pulse value |
Pulse duration | Prog. 30…1000ms |
Modbus RTU | |
Interface | RS485 |
Speed (bps) | 9600/19200/38400/57600 |
Communication parametrs | Parity [&] stop prog. |
Addresing range | 1…247 |
ModBus TCP/Webserver | |
Ehernet interface | IEEE 802.3 (u) 10 Base T/100 Base TX |
Wiring | RJ45 |
Speed | 10/100 Mbit/s |
Duplex | Half/full |
IEC61850 | |
Ethernet inteface | IEEE 802.3 (u) 10 Base T/100 Base TX |
Wiring | RJ45 |
Speed | 10/100 Mbit/s |
Duplex | Half/full |
ProfiBus DP 0V | |
Network | NRZ asynchronous |
Baud rate | 9.6kbit/s…12Mbit/s |
Addresing range | 1…99 prog. |
Complies to | EN 50170 |
Johnson Controls N2 OPEN | |
Inteface | RS485 |
Speed (bps) | 9600 |
Parity | None |
Addresing range | 1…247 prog. |
Wiring diagrams
With shunt on positive polarity
With shunt on negative polarity
