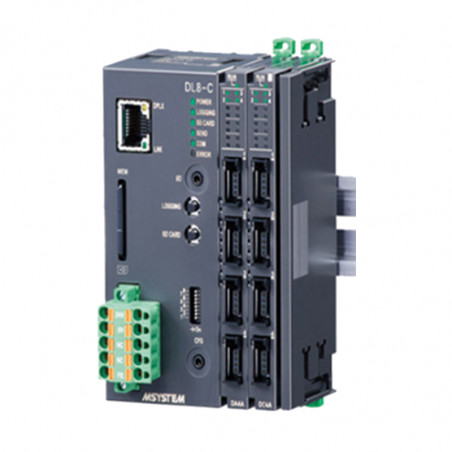

DL-8 Series Web Data Logger

The DL-8 is multifunctional device for simple remote monitoring via internet browser. Thanks to automatic button size adjustment, the device is pretty simple and intuitive in use. DL-8 is dedicated to work in Master – Slave system. Four versions are available: A (basic), B, C, D (expanded). The DL-8 could also upload data to a cloud server. For expanded version there are also available the following functions: FTP server, FTP client, email sending, data logging in a SD Card.



Rated data

Supply 24V DC
Ethernet RJ-45 contactor
Max. no, of I/O modules 12 (max. current 1.6A)
Calendar clock Year, month, day, hour, minute, sec
Status indicator LED Power, logging, SD card, sending, error
Communication Standard IEEE 802.3u
Transmission 10BASE-T, 10BASE-TX
Baud rate 10…100 Mbps
Protocol TCP/IP, Modbus/TCP, HTTP, FTP, SMTP, SNTP
Transmision medium STP category 5/5e
IP address 192.168.0.1
Power consumption 12W
Operating temperature -10…55°C
Operating jumidity 30….90% no condensation
Atmosphere No corrosive gas or heavy dust
Mounting DIN rail
Weight 170g
Isolation resistance ≥100MΩ
Os (PC) Windows XP (SP3) or later
Browser (PC) IE, Mozilla, Opera, Chrome, Safari
OS (tablet) iOS 5 or later, Android 4.0 or later
Browser (tablet) Safari, Android, Chrome
OS (smartphone) iOS 5 or later, Android 4.0 or later
Browser (smartphone) Safari, Android, Chrome


State indicators

Name Color Function
POWER Green

ON – device operating normally
Blinking – Ethernet link error
Blinking – obtaining DHCP address
LOGGING Green ON – logging
SD CARD Green

ON – SD card mounted
Blinking – reading/writing SD card
SEND Green Blinking – Reporting
COM Green Blinking – communication (expect Modbus/TCP Master
ERROR Red ON – error
DPLX Green ON – full duplex
LNK Amber ON – link


Dimensions

Rejestrator danych z modułem komunikacji internetowej serii DL-8 wymiary



System configuration examples

Rejestrator danych z modułem komunikacji internetowej serii DL-8 - przykładowe konfiguracje urządzenia
