Hersteller: Lumberg

Vertriebspartner

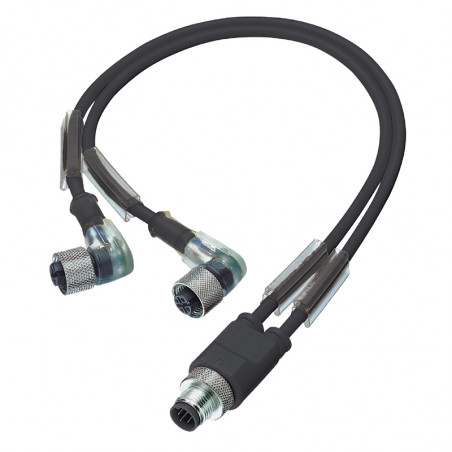

Double distributor ACTOR - SENSOR 4 contacts “ASB”


Technical data

Usage class:
HNA - DIN 400 40

(-25°C do 80°C)
Contact base
TPU, self-extinguished
contact
CuZn, nickled i 0,8 μn golden
Body handle:
TPU, self-extinguished
IP
IP 67

oil proof
Current
4A
Operating voltage
10-30 V DC
Insulation resistance
>109Ω
Pollute level
2 - VDE 0110
Cable
PUR 3 x 0,34 mm2
(42 x Ø0,10 mm);
  ASB 2...

Ø4,3 mm, non halogen,





Producer number Description
ASB 2-RKWT/LED-A4-3-224/0,3m cable length30 cm
ASB 2- RKWT/LEDA4-3-224/1m cable length1 m
ASB 2-RKWT/LEDA4-3-224/2m cable length2 m



Double distributor Z, IP 67

Technical data

Temperature range:
-15°C - 80°C
double distributor:
4/3 contacts(3 contacts + 1 passive hole)
PUR cable: Operating voltage:
4 x Ø,34 mm2 Ø 5 mm
125 V AC /150 V DC
Rest of technical data as previous.
Colours: Contact 1
= brown (+), 3 = blue (-), 4 = black (A1), white (A2)

Producer number Execution
ZV 2-4/3-225/5 m with cable 5 m


ASBS 2M8


Technical data
Temperature range: - 25 °C do +90 °C
Casing: TPU self-extinguished
Contact base:
Female contacts
M8: TPU, self-extinguished
M12: PAGF, self-extinguished
Male contacts
TPU self-extinguished
Contacts: CuZn, nickeled and golden 0,8 micron
Ring O FKM
IP: IP67
Current @ 40C: 4 A
Operating voltage: 60 V
Nominal voltage: 63V
