Hersteller: ServTrayVou

Schlösser

Castle

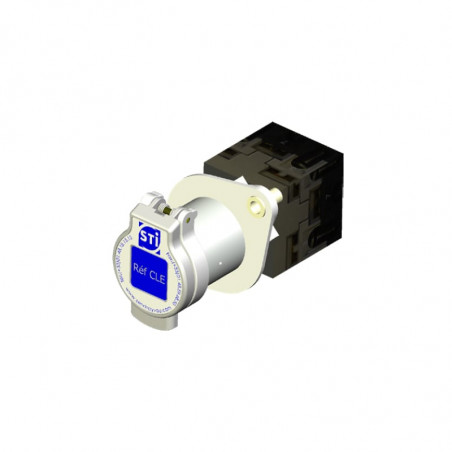

Rotary lock from 1 to 5 key entries RTK*E

This device is used for the locking of power and/or control circuits in open position. Lock with one or more key entries equipped with a rotary switch housed on a panel.

The contacts are with positive security; Opening of contacts when the key is turned.

Ffeatures

N° of Key entries 1…5
Material: nickelled brass
Power: 4kW; 7,5 KW; 11kW; 22kW;
Finish of front panel: Red (RAL 3000) polyester paint Valid from 2 to 5 key entries



Operation



Catch lock rtg RTG


This lock allows the locking of accesses such as doors, caps, casings and other mobile guards…
Compact, it is made up of 2 parts: the body with its key entry generally installed on the fixed part and
the latch key fixed on the moving part.
Specifically conceived for frequent access hazardous areas.

Ffeatures

Material brass
Temperature: -25°C...125°C
Finish nikiel



Bolt Lock solenoïd controlled SENOP


Ffeatures:

Material Copper-aluminium
Temperature: -25°C...75°C
Finish of front panel: Red (RAL 3000) polyester paint
Stopień ochrony: IP40,
Options: Contact 1O - 1C or 2O - 2C

> the lecking of machines  such as discenneeling  switches, circuit breakers with a complementary condition (authorization  delivered by robot, temporization, nuli velocity pick-up...)
> With contacts on the rear of the bolt, the interlocking of many switches, circuit breakers, discenneeling switches, with complementary  condition and indication.
> With an electrical eontaelin positive security on the front of the bolt, the interlocking  of eontroi circuits in open position with complementary condition.




Operation


Solenoïd controlled interlock switch PERTK

Ffeatures

N° of Key entries 1…5
Material: blacha aluminiowa (od 2 do 6 wejść na klucze); INOX (pokrywa ochronna na klucz),
Temperature -20°C…70°C
IP: 40
Voltage 24V, 48V, 110V, 230V AC,
Key entry stainless steel 304

This device is used for the locking of power and/or control circuits in open position up to 22Kw
under 3x380V AC3, with authorization of the end of cycle, robot, temporization, null velocity pick-up…
Lock is embedable on a housing desk with 1 or several key entries. It can be equipped with a
rotary switch allowing the release or the trapping (by voltage output) of one or more keys
after an authorization signal.
The electromechanical lock is equipped with :

  • an electromagnet the locking or unlocking of the principal key.
    The position of the contacts is associated with the control of the principal key (left key when there are several entries).
  • drawback mechanism of the main key locking in case of an electromagnet dysfunctionment (100% positive security).
  • a green LED power indicator.
  • a pushbutton of voluntary operation and energy saving.
  • an internal wiring connector block.
  • a cancelling key to use in case of power cuts.

  • SP version (key release) : After authorization signal, the green indicator illuminates. To release the key, press
    the pushbutton (maximum 30s.).
  • RP version (key trapped): After authorization signal, the green indicator illuminates. To trap the key, press
    the pushbutton (maximum 30s.).



Bolt lock single key entry NXOP

Lock with a key entry used for the mechanical locking of switches, disconnecting switches, valves…
With a safety contact, the lock bolt NX allows to lock a control circuit or a feedback of information.

Ffeatures:

Material INOX 304,
Temperature -25oC …125oC,
Finish: Red (RAL 3000) polyester paint
Options Without flip cap, Not painted, Key absent bolt retracted, Electrical contacts, Multi-clasp for padlock, 400˚C, not painted, without electrical contacts, without flip cap.
Bolt diameter: 10mm or 15mm

Key position defines the position of the bolt. The key rotation moves the bolt.
The electrical contacts allow the locking of control circuits and/or the information feedback.
  • Key out/ bolt extended
  • Key in/ bolt retracted



Latch lock single key entry NXOL

This lock allows the locking of accesses such as sliding doors, caps, casings and other guards Made up of stainless steel to resist to aggressive or corrosive environments. The NXOL lock equipped with the optional Chain Key can support a high degree of misalignment.

Ffeatures:

Material Stainless 304 (body and Latch)
Temperature -25oC …125oC
Finish Red (RAL 3000) polyester paint
Opcje: 400°C, not painted, without contacts or flip cap Emergency release system
  • NXSOLCK : Access locking single key entry with Chain key
  • NXOLT : Access locking single key entry with T latch
