CI 110-420 EI-Schütze
  • CI 110-420 EI-Schütze

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Danfoss

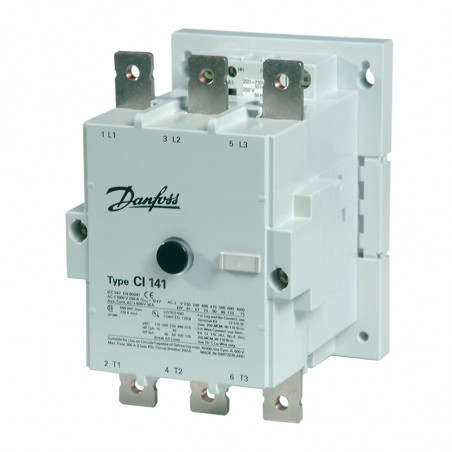

CI 110-420 EI-Schütze

Series of types of AC contactors in the range of 55 - 220 kW. For models marked as EI it is also possible to control directly from the PLC, with a build in interface, with independent coil supply with AC voltage. Build in interface optimises coil power consumption and provides operation without sounds. Completely tight construction allows for operation in hard conditions. It is possible to manually turn on contactor.The additional contacts block NO + 1NC is mounted in standard, but there is possibility to make extension of three the same blocks.It is recommended to use anty shock shields on the cables tips.



Electrical parameters -AC coil
Type Ue 230V kW Ue 400V kW le
(AC - 3)
[A]		 Ith 40°C
(AC - 1)
[A]		 Ith 60°C
(AC - 1)
[A]		 Main contact Additional contact Catalogue number
Cl 110 32 55 110 160 135 3 1NO + 1NC 037H3081XX
Cl 141 45 75 140 250 210 3 1NO + 1NC 037H3339XX
Cl 180 55 90 180 250 210 3 1NO + 1NC 037H3082XX
Cl 210EI 63 110 210 350 300 3 1NO + 1NC 037H3259XX
Cl 250EI 80 132 250 350 300 3 1NO + 1NC 037H3267XX
CI 300EI 90 160 300 450 380 3 1NO + 1NC 037H3269XX
CI 420EI 132 220 420 500 425 3 1NO + 1NC 037H3279XX



Coil for CI110 -CI180

Control voltage Symbol XX Catalogue number
110 V 50Hz 22 037H3261
220-230 V 50Hz 31 037H3262
380-400V 50Hz 37 037H3264


Coil for CI210EI - CI300EL

Control voltage Symbol XX Catalogue number
110-130 V
50/60HZ		 23 037H3413
208-277 V
50/60Hz		 32 037H3415
380-500 V
50/60Hz		 39 037H3417


Coil for CI420EI

Voltage Symbol Number
110-130 V
50/60HZ		 23 037H3421
208-277 V 50/60HZ 32 037H3423
380-500 V 50/60HZ 39 037H3425




Accessories



Function le
[A]		 Ith 60°C
[A]		 Ue
[V]		 Catalogue number Type
1 NO + 1 NC 5.5 16 690 037H3348 CBC - 11



Dimensions



CI 110 do CI 180 + TI 180 E
CI 210 EI do CI 420 EI + TI 630 E
