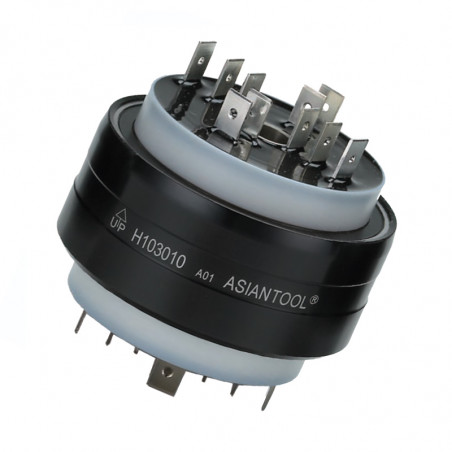

![Drehsteckverbinder mit einem Durchgangsloch Drehsteckverbinder mit einem Durchgangsloch](https://www.dacpol.eu/8818-large_default/drehsteckverbinder-mit-einem-durchgangsloch.jpg)
![Drehsteckverbinder mit einem Durchgangsloch Drehsteckverbinder mit einem Durchgangsloch](https://www.dacpol.eu/8818-large_default/drehsteckverbinder-mit-einem-durchgangsloch.jpg)
Sie müssen eingeloggt sein
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Fotos dienen nur zu Informationszwecken.
please use latin characters
Usage
Advantages
Model | Through – bore ψ |
Conductors Poles |
Current Amp. [A] |
Voltage AC/V [V] |
Max. Freq .[Mhz] |
Max. turn/min |
Operation temperature Max/Min [oC] |
Rotary torque. [gm-cm] |
Resistance |
---|---|---|---|---|---|---|---|---|---|
H23010 |
10.2mm | 2 | 30 | 250 | 100 | 150 | 60/-30 | 700 | > 25MΩ |
H43010 |
10.2mm | 4 | 30 | 250 | 100 | 100 | 60/-30 | 1000 | > 25MΩ |
H63010 |
10.2mm | 6 | 30 | 250 | 100 | 60 | 60/-30 | 1500 | > 25MΩ |
H83010 |
10.2mm | 8 | 30 | 250 | 100 | 40 | 60/-30 | 2000 | > 25MΩ |
H103010 |
10.2mm | 10 | 30 | 250 | 100 | 20 | 60/-30 | 3000 | > 25MΩ |
H23016 |
16.2mm | 2 | 30 | 250 | 100 | 100 | 60/-30 | 1000 | >25MΩ |
H43016 |
16.2mm | 4 | 30 | 250 | 100 | 60 | 60/-30 | 1500 | >25MΩ |
H63016 |
16.2mm | 6 | 30 | 250 | 100 | 40 | 60/-30 | 2000 | >25MΩ |
H83016 |
16.2mm | 8 | 30 | 250 | 100 | 20 | 60/-30 | 3000 | >25MΩ |
H23016 2 contact 30A/AC250V Through– bore 16,2mm![]() |
H43016 4 contact 30A/AC250V otówr przelotowy 16,2mm![]() |
H63016 2 contact 30A/AC250V Through– bore 16,2mm![]() |
H8016 8 contact 30A/AC250V Through– bore 16,2mm![]() |
H23010 2 contact 30A/AC250V Through– bore 10,2mm![]() |
H43010 4 contact 30A/AC250V Through– bore 10,2mm![]() |
H63010 6 contact 30A/AC250V Through– bore 10,2mm![]() |
H83010 8 contact 30A/AC250V Through– bore 10,2mm![]() |
H103010 10 contact 30A/AC250V Through– bore 10,2mm![]() |
