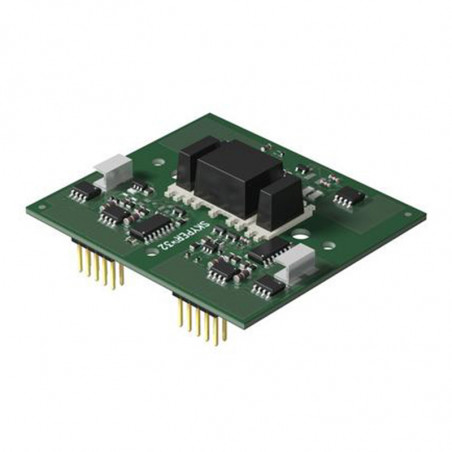

SEMIDRIVER Treiber
  • SEMIDRIVER Treiber

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: SEMIKRON

SEMIDRIVER Treiber

Type

Number of Channels

VCE max.
V
Gate voltage
V
Output peak current
A
Output charge
µC
Switching frequency
kHz
Isolation voltage
kV
dv/dt max.
kV/µs

Driver Core

SKYPER 32 (R)

 2 1700 +15 / -7 15 2,5 50 4 50

SKYPER 32PRO (R)

 2 1700 +15 / -7 15 6,3 50 4 50

SKYPER 52

 2 1700 +15 / -15 50 5 100 4 100

SKHI 21A (R)

 2 1200 +15 / 0 8 4 50 2,5 50

SKHI 22 A / B (R)

 2 1200 +15 / -7 8 4 50 2,5 50

SKHI 22 A / B H4 (R)

 2 1700 +15 / -7 8 4 50 4 50

SKHI 24 (R)

 2 1700 +15 / -8 15 5 50 4 50

SKHI 61 (R)

 6 900 +15 / -6,5 2 1 50 2,5 15

SKHI 71 (R)

 7 900 +15 / -6,5 2 1 50 2,5 15

Driver

SKHI 10/12 (R)

 1 1200 +15 / -8 8 9,6 100 2,5 75

SKHI 10/17 (R)

 1 1700 +15 / -8 8 9,6 100 4 75

SKHI 23/12 (R)

 2 1200 +15 / -8 8 4,8 100 2,5 75

SKHI 23/17 (R)

 2 1700 +15 / -8 8 4,8 100 4 75

SKHI 26W, SKHI 26F*

 2 1600 +15 / -8 8 10 100 4 75

SKHI 27W*

 2 1700 +15 / -8 30 30 10 4 75

SKHIT 01 (R)

3 - - - - - 2,5 -

Evaluation Boards
Type

Description


Board 1 SKYPER 32PRO (R)

 Evaluation Board SKYPER 32PRO for e.g. SEMITRANS modules

Board 2s SKYPER 32 (R)

 Evaluation Board SKYPER 32 for SEMiX 2s (spring version)

Board 3s SKYPER 32 (R)

 Evaluation Board SKYPER 32 for SEMiX 3s (spring version)

Board 4s SKYPER 32 (R)

 Evaluation Board SKYPER 32 for SEMiX 4s (spring version)

Board 2s SKYPER 32PRO (R)

Evaluation Board SKYPER 32PRO for SEMiX 2s (spring version)

Board 3s SKYPER 32PRO (R)

Evaluation Board SKYPER 32PRO for SEMiX 3s (spring version)

Board 4s SKYPER 32PRO (R)

 Evaluation Board SKYPER 32PRO for SEMiX 4s (spring version)

SKPC 22/2

 Evaluation Board SKHI 21A, 22A / 22B /H4
