Hersteller: OMERIN

Mahizieller CSC, EGKS - Doppelisolierdrähte -60 ° C bis + 180 ° C

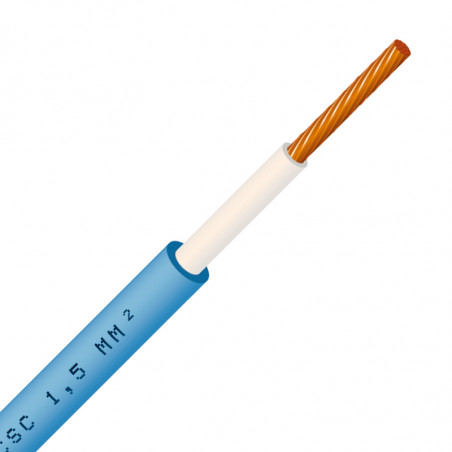

SILICABLE® CSC and ECSC Double insulating layer -60 °C to +180 °C

Characteristics

• Continuous operating temperatures: -60 °C to +180 °C.
• Good resistance to thermal shock and UV.
• Rated voltage: 300/500 V.
• Test voltage: 3750 V.

Standard products

• Inner insulating layer: white.
• Outer insulating layer: all colours including two-coloured.

Approvals - standards

• Halogen-free: IEC 60754-1 / EN 60754-1.
• Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
• Low smoke density: IEC 61034-2 / EN 61034-2.
• Fire retardant: NF C 32-070 test C1.
• Safety of household and similar electrical appliances: NF EN 60335-1.

Applications

• Class 2 lighting equipment and convectors or any other household electrical appliance complying with standard NF EN 60335-1.
• Cabling for rotating machines (class H).

Options

• Nickel-plated copper core: ref. CNCSC.
• Silver-plated copper core: ref. ACSC.
• Pure nickel core (not described in IEC 60228): ref. NCSC.
• Outer electrical shielding: > Tin-plated copper braid: ref. CSCBE or ECSCBE.
• Outer Flexible armour: > Galvanised steel braid: ref. CSCBG or ECSCBG. > Stainless steel braid: ref. CSCBI or ECSCBI.
• Stranded bare copper (ref. CSC) or tin-plated (ref. ECSC) core - class 2 as per IEC 60228: see details of the option below.
• Solid bare copper (ref. RCSC) or tin-plated (ref. RECSC) core - class 1 as per IEC 60228: contact us.
• Other nominal cross-sections: contact us.
• Other options and/or combinations of the options outlined above: contact us.

1 • Flexible bare copper (ref. CSC) or tin-plated (ref. ECSC) core -- class 5 as per IEC 60228.
2 • Insulation: Silicone rubber.

Flexible core • class 5 as per IEC 60228 INSULATED WIRE OR CABLE
Nominal cross-section
[mm2]		 Nominal stranding Maximum linear resistance at 20 °C (Ω/km) (bare copper core) Total nominal thickness of insulation (mm) Nominal diameter (mm) Approximate linear weight (kg/km)
0.5 16 x 0.20 39.0 0.7 2.4 10.2
0.75 24 x 0.20 26.0 0.7 2.6 13.1
1 32 x 0.20 19.5 0.7 2.8 16.1
1.5 30 x 0.25 13.3 0.8 3.2 22.2
2.5 50 x 0,25 7,98 0.9 3.8 33.9
4 56 x 0,30 4,95 1.0 4.6 52.3
6 84 x 0,30 3,30 1.2 5.6 78.0
10 80 x 0,40 1,91 1.4 7.2 128
16 126 x 0,40 1,21 1.6 8.6 192
25 196 x 0,40 0,780 2.0 10.8 301
35 276 x 0,40 0,554 2.0 12.2 406
50 396 x 0,40 0,386 2.2 14.9 592

Stranded core • class 2 as per IEC 60228 INSULATED WIRE OR CABLE
Nominal cross-section
[mm2]		 Nominal stranding  Maximum linear resistance at 20 °C (Ω/km) (bare copper core) Total nominal thickness of insulation (mm) Nominal diameter (mm) Approximate linear weight (kg/km)
0,5 7 x 0,30 36,0 0.7 2.3 9.6
0,75 7 x 0,37 24,5 0.7 2.5 12.6
1 7 x 0,43 18,1 0.7 2.7 15.6
1,5 7 x 0,52 12,1 0.8 3.2 22.4
2,5 7 x 0,67 7,41 0.9 3.8 34.2
4 7 x 0,85 4,61 1.0 4.6 52.7
6 7 x 1,04 3,08 1.2 5.5 77.2
