SILICABLE McBee-ECS und ECS-MCBAL -60 ° C bis + 180 ° C

Characteristics
  • Continuous operating temperatures: -60 °C to +180 °C.
  • Good resistance to thermal shock and UV.
  • Rated voltage: up to 600/1000 V.
  • Test voltage: up to 3000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer sheath colour: brick red.

Approvals - standards

  • Halogen-free: IEC 60754-1 / EN 60754-1.
  • Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 60332-1-2 / NF C 32-070 test C2.
  • Tests on electric cables under fire conditions Circuit integrity: IEC 60331-21.

Applications

  • Industrial cabling in hot atmospheres up to 180 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for furnaces, ovens, machines for thermoplastics and rubber, welding stations, etc.
  • Lights, spotlights, etc.

Options

  • Bare copper core: ref. MCBE-CS and ref. MCBAL-CS.
  • Inner protective sheath in silicone rubber between the conductor assembly and metal braid: ref. MCBEC-ECS and ref. MCBALC-ECS
  • Outer flexible armour: > Galvanised steel braid: ref. BGMCBE-ECS and ref. BGMCBAL-ECS. > Stainless steel braid: ref. BIMCBE-ECS and ref. BIMCBAL-ECS.
  • Outer braid in silicone coated fibreglass ref. VMCBE-ECS and VMCBAL-ECS.
  • Other nominal cross-sections: contact us.
  • Other nominal stranding: contact us.
  • Other colours: contact us.

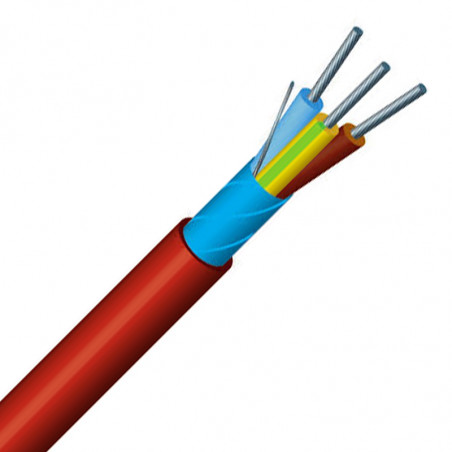

 SILICABLE MCBE-ECS i MCBAL-ECS -60°C do + 180°C

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • Insulation: Silicone rubber.
3 • Optional separating tape.
4 • Electrical shielding: Aluminium/PET tape + continuity wire.
5 • Electrical shielding: Tin-plated copper braid.
6 • Outer sheath: Silicone rubber.
Identification
Standard conductor colours:
Number of conductors With an earth wire Without an earth wire
2 - blue – brown
3 yellow - green – blue – brown brown – black – grey
4 yellow - green – brown – black – grey blue – brown – black – grey
5 yellow - green – blue – brown – black – grey blue – brown – black – grey – black
≥6 yellow - green – grey numbered grey numbered


Flexible core • class 5 as per IEC 60228 INSULATED CONDUCTORS SHEATHED CABLE
Nominal cross-section (mm2) Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Nominal thickness of insulation (mm) Nominal diameter (mm) Nominal diameter (mm) Approximate linear weight (kg/km)
2 x 0,5 16 x 0,2 40.1 0.6 2.1 6.2 55.0
3 x 0,5 16 x 0,2 40.1 0.6 2.1 6.8 71.8
4 x 0,5 16 x 0,2 40.1 0.6 2.1 7.6 88.7
5 x 0,5 16 x 0,2 40.1 0.6 2.1 8.3 104
6 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 115
7 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 124
10 x 0,5 16 x 0,2 40.1 0.6 2.1 11.0 168
12 x 0.5 16 x 0,2 40.1 0.6 2.1 11.6 194
14 x 0.5 16 x 0,2 40.1 0.6 2.1 12.1 216
16 x 0.5 16 x 0,2 40.1 0.6 2.1 12.8 247
19 x 0.5 16 x 0,2 40.1 0.6 2.1 13.4 279
2 x 0,75 24 x 0,2 26.7 0.6 2.4 6.7 69.3
3 x 0,75 24 x 0,2 26.7 0.6 2.4 7.3 85.6
4 x 0,75 24 x 0,2 26.7 0.6 2.4 8.1 105
5 x 0,75 24 x 0,2 26.7 0.6 2.4 9.0 126
6 x 0,75 24 x 0,2 26.7 0.6 2.4 9.7 141
7 x 0,75 24 x 0,2 26.7 0.6 2.4 9.8 155
10 x 0,75 24 x 0,2 26.7 0.6 2.4 12.5 226
12 x 0,75 24 x 0,2 26.7 0.6 2.4 13.1 260
14 x 0,75 24 x 0,2 26.7 0.6 2.4 13.7 290
16 x 0,75 24 x 0,2 26.7 0.6 2.4 14.4 321
19 x 0,75 24 x 0.2 26.7 0.6 2.4 15.1 365
2 x 1 32 x 0,2 20.0 0.6 2.5 6.7 82.6
3 x 1 32 x 0,2 20.0 0.6 2.5 7.2 99.7
4 x 1 32 x 0,2 20.0 0.6 2.5 7.9 120
5 x 1 32 x 0,2 20.0 0.6 2.5 8.9 146
6 x 1 32 x 0,2 20.0 0.6 2.5 9.7 165
7 x 1 32 x 0,2 20.0 0.6 2.5 9.9 184
10 x 1 32 x 0,2 20.0 0.6 2.5 12.8 256
12 x 1 32 x 0,2 20.0 0.6 2.5 13.4 305
14 x 1 32 x 0,2 20.0 0.6 2.5 13.9 347
16 x 1 32 x 0,2 20.0 0.6 2.5 14.5 397
19 x 1 32 x 0,2 20.0 0.6 2.5 15.3 444
2 x 1,5 30 x 0,25 13.7 0.6 2.8 7.4 104
3 x 1,5 30 x 0,25 13.7 0.6 2.8 7.8 123
4 x 1,5 30 x 0,25 13.7 0.6 2.8 8.5 149
5 x 1,5 30 x 0,25 13.7 0.6 2.8 9.4 177
6 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 198
7 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 218
10 x 1,5 30 x 0,25 13.7 0.6 2.8 13.2 307
12 x 1,5 30 x 0,25 13.7 0.6 2.8 15.0 375
14 x 1,5 30 x 0,25 13.7 0.6 2.8 15.6 425
16 x 1,5 30 x 0,25 13.7 0.6 2.8 16.2 488
19 x 1,5 30 x 0,25 13.7 0.6 2.8 17.0 574
2 x 2,5 50 x 0,25 8.21 0.7 3.4 9.0 152
3 x 2,5 50 x 0,25 8.21 0.7 3.4 9.5 182
4 x 2,5 50 x 0,25 8.21 0.7 3.4 10.4 220
5 x 2,5 50 x 0,25 8.21 0.7 3.4 11.4 265
6 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 305
7 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 336
10 x 2,5 50 x 0,25 8.21 0.7 3.4 16.6 494
12 x 2,5 50 x 0,25 8.21 0.7 3.4 17.4 569
14 x 2,5 50 x 0,25 8.21 0.7 3.4 18.2 652
16 x 2,5 50 x 0,25 8.21 0.7 3.4 19.2 735
19 x 2,5 50 x 0,25 8.21 0.7 3.4 20.4 861
2 x 4 56 x 0,3 5.09 0.8 4.2 10.4 201
3 x 4 56 x 0,3 5.09 0.8 4.2 11.4 257
4 x 4 56 x 0,3 5.09 0.8 4.2 12.5 324
5 x 4 56 x 0,3 5.09 0.8 4.2 13.9 384
6 x 4 56 x 0,3 5.09 0.8 4.2 15.6 451
7 x 4 56 x 0,3 5.09 0.8 4.2 15.6 499
10 x 4 56 x 0,3 5.09 0.8 4.2 20.0 730
12 x 4 56 x 0,3 5.09 0.8 4.2 21.0 855
14 x 4 56 x 0,3 5.09 0.8 4.2 22.4 977
16 x 4 56 x 0,3 5.09 0.8 4.2 23.4 1103
19 x 4 56 x 0,3 5.09 0.8 4.2 24.6 1320
2 x 6 84 x 0,3 3.39 0.8 4.8 12.4 283
3 x 6 84 x 0,3 3.39 0.8 4.8 12.8 381
4 x 6 84 x 0,3 3.39 0.8 4.8 14.0 461
5 x 6 84 x 0,3 3.39 0.8 4.8 17.4 579
6 x 6 84 x 0,3 3.39 0.8 4.8 18.8 677
7 x 6 84 x 0,3 3.39 0.8 4.8 18.8 746
2 x 10 80 x 0,4 1.95 1.0 6.4 15.4 428
3 x 10 80 x 0,4 1.95 1.0 6.4 18.0 599
4 x 10 80 x 0,4 1.95 1.0 6.4 20.0 774
5 x 10 80 x 0,4 1.95 1.0 6.4 22.0 911
6 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1031
7 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1144
2 x 16 126 x 0,4 1.24 1.2 7.8 19.0 676
3 x 16 126 x 0,4 1.24 1.2 7.8 21.0 866
4 x 16 126 x 0,4 1.24 1.2 7.8 23.2 1069
5 x 16 126 x 0,4 1.24 1.2 7.8 25.6 1319
6 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1511
7 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1682
2 x 25 196 x 0,4 0.795 1.4 9.6 24.0 996
3 x 25 196 x 0,4 0.795 1.4 9.6 25.6 1284
4 x 25 196 x 0,4 0.795 1.4 9.6 29.3 1620

Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

Characteristics
  • Continuous operating temperatures: -60 °C to +180 °C.
  • Good resistance to thermal shock and UV.
  • Rated voltage: up to 600/1000 V.
  • Test voltage: up to 3000 V.

Standard products

  • Standard conductor colours: see table below.
  • Standard outer sheath colour: brick red.

Approvals - standards

  • Halogen-free: IEC 60754-1 / EN 60754-1.
  • Low corrosivity of gas emissions: IEC 60754-2 / EN 60754-2.
  • Fire retardant: NF C 32-070 test C1.
  • Resistance to vertical flame propagation for an insulated cable: IEC 60332-1-2 / EN 60332-1-2 / NF C 32-070 test C2.
  • Tests on electric cables under fire conditions Circuit integrity: IEC 60331-21.

Applications

  • Industrial cabling in hot atmospheres up to 180 °C.
  • Cabling in the metallurgical industry, glassworks, etc.
  • Cabling for furnaces, ovens, machines for thermoplastics and rubber, welding stations, etc.
  • Lights, spotlights, etc.

Options

  • Bare copper core: ref. MCBE-CS and ref. MCBAL-CS.
  • Inner protective sheath in silicone rubber between the conductor assembly and metal braid: ref. MCBEC-ECS and ref. MCBALC-ECS
  • Outer flexible armour: > Galvanised steel braid: ref. BGMCBE-ECS and ref. BGMCBAL-ECS. > Stainless steel braid: ref. BIMCBE-ECS and ref. BIMCBAL-ECS.
  • Outer braid in silicone coated fibreglass ref. VMCBE-ECS and VMCBAL-ECS.
  • Other nominal cross-sections: contact us.
  • Other nominal stranding: contact us.
  • Other colours: contact us.
 SILICABLE MCBE-ECS i MCBAL-ECS -60°C do + 180°C

1 • Flexible tin-plated copper core - class 5 as per IEC 60228.
2 • Insulation: Silicone rubber.
3 • Optional separating tape.
4 • Electrical shielding: Aluminium/PET tape + continuity wire.
5 • Electrical shielding: Tin-plated copper braid.
6 • Outer sheath: Silicone rubber.
Identification
Standard conductor colours:
Number of conductors With an earth wire Without an earth wire
2 - blue – brown
3 yellow - green – blue – brown brown – black – grey
4 yellow - green – brown – black – grey blue – brown – black – grey
5 yellow - green – blue – brown – black – grey blue – brown – black – grey – black
≥6 yellow - green – grey numbered grey numbered


Flexible core • class 5 as per IEC 60228 INSULATED CONDUCTORS SHEATHED CABLE
Nominal cross-section (mm2) Nominal stranding Maximum linear resistance at 20 °C (Ω/km) Nominal thickness of insulation (mm) Nominal diameter (mm) Nominal diameter (mm) Approximate linear weight (kg/km)
2 x 0,5 16 x 0,2 40.1 0.6 2.1 6.2 55.0
3 x 0,5 16 x 0,2 40.1 0.6 2.1 6.8 71.8
4 x 0,5 16 x 0,2 40.1 0.6 2.1 7.6 88.7
5 x 0,5 16 x 0,2 40.1 0.6 2.1 8.3 104
6 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 115
7 x 0,5 16 x 0,2 40.1 0.6 2.1 8.9 124
10 x 0,5 16 x 0,2 40.1 0.6 2.1 11.0 168
12 x 0.5 16 x 0,2 40.1 0.6 2.1 11.6 194
14 x 0.5 16 x 0,2 40.1 0.6 2.1 12.1 216
16 x 0.5 16 x 0,2 40.1 0.6 2.1 12.8 247
19 x 0.5 16 x 0,2 40.1 0.6 2.1 13.4 279
2 x 0,75 24 x 0,2 26.7 0.6 2.4 6.7 69.3
3 x 0,75 24 x 0,2 26.7 0.6 2.4 7.3 85.6
4 x 0,75 24 x 0,2 26.7 0.6 2.4 8.1 105
5 x 0,75 24 x 0,2 26.7 0.6 2.4 9.0 126
6 x 0,75 24 x 0,2 26.7 0.6 2.4 9.7 141
7 x 0,75 24 x 0,2 26.7 0.6 2.4 9.8 155
10 x 0,75 24 x 0,2 26.7 0.6 2.4 12.5 226
12 x 0,75 24 x 0,2 26.7 0.6 2.4 13.1 260
14 x 0,75 24 x 0,2 26.7 0.6 2.4 13.7 290
16 x 0,75 24 x 0,2 26.7 0.6 2.4 14.4 321
19 x 0,75 24 x 0.2 26.7 0.6 2.4 15.1 365
2 x 1 32 x 0,2 20.0 0.6 2.5 6.7 82.6
3 x 1 32 x 0,2 20.0 0.6 2.5 7.2 99.7
4 x 1 32 x 0,2 20.0 0.6 2.5 7.9 120
5 x 1 32 x 0,2 20.0 0.6 2.5 8.9 146
6 x 1 32 x 0,2 20.0 0.6 2.5 9.7 165
7 x 1 32 x 0,2 20.0 0.6 2.5 9.9 184
10 x 1 32 x 0,2 20.0 0.6 2.5 12.8 256
12 x 1 32 x 0,2 20.0 0.6 2.5 13.4 305
14 x 1 32 x 0,2 20.0 0.6 2.5 13.9 347
16 x 1 32 x 0,2 20.0 0.6 2.5 14.5 397
19 x 1 32 x 0,2 20.0 0.6 2.5 15.3 444
2 x 1,5 30 x 0,25 13.7 0.6 2.8 7.4 104
3 x 1,5 30 x 0,25 13.7 0.6 2.8 7.8 123
4 x 1,5 30 x 0,25 13.7 0.6 2.8 8.5 149
5 x 1,5 30 x 0,25 13.7 0.6 2.8 9.4 177
6 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 198
7 x 1,5 30 x 0,25 13.7 0.6 2.8 10.2 218
10 x 1,5 30 x 0,25 13.7 0.6 2.8 13.2 307
12 x 1,5 30 x 0,25 13.7 0.6 2.8 15.0 375
14 x 1,5 30 x 0,25 13.7 0.6 2.8 15.6 425
16 x 1,5 30 x 0,25 13.7 0.6 2.8 16.2 488
19 x 1,5 30 x 0,25 13.7 0.6 2.8 17.0 574
2 x 2,5 50 x 0,25 8.21 0.7 3.4 9.0 152
3 x 2,5 50 x 0,25 8.21 0.7 3.4 9.5 182
4 x 2,5 50 x 0,25 8.21 0.7 3.4 10.4 220
5 x 2,5 50 x 0,25 8.21 0.7 3.4 11.4 265
6 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 305
7 x 2,5 50 x 0,25 8.21 0.7 3.4 12.4 336
10 x 2,5 50 x 0,25 8.21 0.7 3.4 16.6 494
12 x 2,5 50 x 0,25 8.21 0.7 3.4 17.4 569
14 x 2,5 50 x 0,25 8.21 0.7 3.4 18.2 652
16 x 2,5 50 x 0,25 8.21 0.7 3.4 19.2 735
19 x 2,5 50 x 0,25 8.21 0.7 3.4 20.4 861
2 x 4 56 x 0,3 5.09 0.8 4.2 10.4 201
3 x 4 56 x 0,3 5.09 0.8 4.2 11.4 257
4 x 4 56 x 0,3 5.09 0.8 4.2 12.5 324
5 x 4 56 x 0,3 5.09 0.8 4.2 13.9 384
6 x 4 56 x 0,3 5.09 0.8 4.2 15.6 451
7 x 4 56 x 0,3 5.09 0.8 4.2 15.6 499
10 x 4 56 x 0,3 5.09 0.8 4.2 20.0 730
12 x 4 56 x 0,3 5.09 0.8 4.2 21.0 855
14 x 4 56 x 0,3 5.09 0.8 4.2 22.4 977
16 x 4 56 x 0,3 5.09 0.8 4.2 23.4 1103
19 x 4 56 x 0,3 5.09 0.8 4.2 24.6 1320
2 x 6 84 x 0,3 3.39 0.8 4.8 12.4 283
3 x 6 84 x 0,3 3.39 0.8 4.8 12.8 381
4 x 6 84 x 0,3 3.39 0.8 4.8 14.0 461
5 x 6 84 x 0,3 3.39 0.8 4.8 17.4 579
6 x 6 84 x 0,3 3.39 0.8 4.8 18.8 677
7 x 6 84 x 0,3 3.39 0.8 4.8 18.8 746
2 x 10 80 x 0,4 1.95 1.0 6.4 15.4 428
3 x 10 80 x 0,4 1.95 1.0 6.4 18.0 599
4 x 10 80 x 0,4 1.95 1.0 6.4 20.0 774
5 x 10 80 x 0,4 1.95 1.0 6.4 22.0 911
6 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1031
7 x 10 80 x 0,4 1.95 1.0 6.4 22.8 1144
2 x 16 126 x 0,4 1.24 1.2 7.8 19.0 676
3 x 16 126 x 0,4 1.24 1.2 7.8 21.0 866
4 x 16 126 x 0,4 1.24 1.2 7.8 23.2 1069
5 x 16 126 x 0,4 1.24 1.2 7.8 25.6 1319
6 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1511
7 x 16 126 x 0,4 1.24 1.2 7.8 27.8 1682
2 x 25 196 x 0,4 0.795 1.4 9.6 24.0 996
3 x 25 196 x 0,4 0.795 1.4 9.6 25.6 1284
4 x 25 196 x 0,4 0.795 1.4 9.6 29.3 1620
