SILICABLE® nvas -60 ° C bis 450 ° C
  • SILICABLE® nvas -60 ° C bis 450 ° C

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: OMERIN

SILICABLE® nvas -60 ° C bis 450 ° C

Characteristics

• Continuous operating temperatures: -60 °C to +450 °C
• Excellent resistance to thermal shock and oxidization of core.
• Rated voltage: 300/500V.
• Test voltage: 2000V.

Standard products

• Standard colour: grey.
• Other colou on request includnig yellow/green.

Approvals - standards

• Nickiel type 200, as per standards DIN 17753, DIN 17740 and ASTM B160.
• VERITAS approval certificates: > No. BV 153552. > No. BV 256192.
• VDE test report no. 9296-5950-0001/32YAT F42/sld-Fc

Applications

• Cabling for heating resistors, cartridgers, bands and plates.
• Cabling for domestic electrical heating appliances: kitchens, professional ovens, etc.
• Machines for thermoplastics or rubber.
• Industrial furnaces and air ovens.
• Heavy industry" foundries, steelworks, glassworks, etc

Options

• Fibreglass insulation for very high temperatures: ref. NVS-R (reduced outer diamteres).
• Other nominal cross-sections: contact us.
• Other options: contact us.

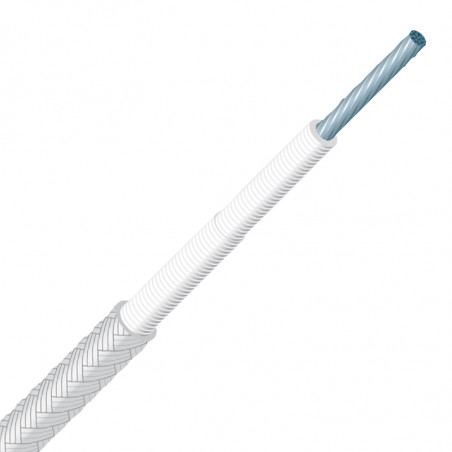

1- Stranded or flexible nickle core.
2- Impregnated fibreglass lappings.
3- Silicone-coated mineral fibre braid.


Conducting Conduit

Insulated wire or cable
Nominal cross-section
[mm2]		 Nominal stranding Maximum linear resistance at 20°C
[Ω/km]		 Nominal diameter
[mm]		 Approximate linear weight
[kg/km]
0,25 8 x 0,20 503 2,2 8,5
0,5 7 x 0,30 229 2,5 10,4
0,75 11 x 0,30 156 2,7 12,9
1 14 x 0,30 115 3,2 17,9
1,5 21 x 0,30 77,2 3,4 24,2
2 29 x 0,30 58,0 3,6 30,6
2,5 35 x 0,30 47,2 4,0 34,9
4 56 x 0,30 31,5 4,5 49,2
6 84 x 0,30 21,0 5,0 71,5
10 140 x 0,30 12,1 8,0 138
16 228 x 0,30 7,72 9,0 205
25 354 x 0,30 4,97 10,6 300
35 495 x 0,30 3,53 13,0 401
50 707 x 0,30 2,46 14,4 578
