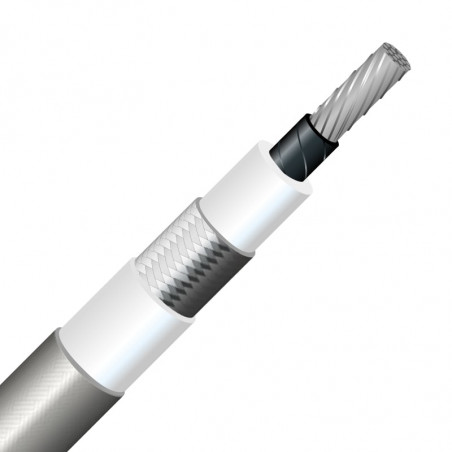

SILICOUL® SCR 6.6 kV -60 °C bis +180 °C

General characteristics

• Continuous operating temperature: -60 °C to +180 °C.
• Good resistance to oil and hydrocarbons.
• Good mechanical strength.

Electrical characteristics

• Rated voltage: 6.6 kV.
• Test voltage: 15 kV.

Approvals – standards

• Compliance with the standards : IEC 60228, IEC 60331-11/21, IEC 60332-1-1/2, IEC 60332-3-22 category A and IEC 60754-2.

Applications

• All industrial applications for which power cables can be submitted to electromagnetic disturbances.
• Cabling for rotating machines: motors, alternators, generators.
• Cabling for static machines: transformers, inductors, inverters, choppers.
• Power cabinets.

Standard products

• Standard insulation colour: white.
• Standard sheath colour: white.
• Standard reinforcing braid colour: grey.

Options

• Extra-flexible tin-plated copper core – class 6 as per IEC 60228: contact us.
• Flexible or extra-flexible bare copper, silver-plated or nickel-plated copper core – class 5 or 6 as per IEC 60228: contact us.
• Outer flexible armour: > Galvanised steel braid (ref. SILICOUL® SCR BG 6.6 kV): contact us. > Stainless steel braid (ref. SILICOUL® SCR BI 6.6 kV): contact us.
• Multi-conductor cable made up of an assembly of several single conductor cables SILICOUL® SCR 6.6 kV: contact us.
• Outer marking: contact us.
• Other colours: contact us.
• Other nominal cross-sections: contact us.
• Other options and/or combinations of the options outlined above: contact us.
