Hersteller: OMERIN

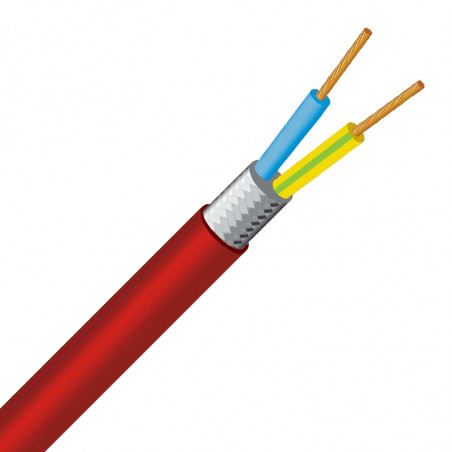

SILIFLAM 500 TEL-EI / EG - resistent Telefonkabel

Characteristics

  • Rated voltage: 100/170 V.
  • Maximum core temperature: +90 °C.
  • Minimum bending radius: 10 x diameter.

Standard products

  • Outer sheath: brick red.

Approvals - standards

  • Fire-resistant as per NF C 32-070 CR1 test.
  • Fire-resistant as per IEC 60331-21, 90 minutes.
  • Fire retardant as per NF C 32-070 test C1, IEC 60332-3-22 and IEC 60332-3-24.
  • Flame retardant as per NF C 32-070 test C2 and IEC 60332-1-2.
  • Halogen free as per IEC 60754-1.
  • No smoke corrosiveness as per IEC 60754-2.
  • Low smoke opacity as per IEC 61034-2.
  • Admitted to the NF-USE certification mark as per standards NF C 32-070 and NF C 32-310.

Applications

  • Fire safety circuits in public-access or high-rise buildings.

Options

  • General shielding only: reference PYRITEL 100 EN.
  • Other stranding: contact us
SILIFLAM 500TEL - ognioodporne kable telefoniczne -60°C do +200°C

1 • Solid bare copper core Ø 0.9 mm
2 • EI2 fire-resistant elastomer insulation.
3 • Electrical shielding: metallic tape + continuity wire.
4 • Electrical shielding: metallic tape + continuity wire.
5 • Outer sheath in fire-resistant elastomer.


Conductor* Sheath*
Number of pairs Cross-sections Radial thickness (mm) Radial thickness (mm) Outside diameter (mm)
Min. Max.
2 0.636 0.7 1.0 9.7 11.2
3 0.636 0.7 1.2 10.8 12.4
5 0.636 0.7 1.4 13.3 15.2
7 0.636 0.7 1.6 14.9 17.0
10 0.636 0.7 1.8 19.2 21.7
15 0.636 0.7 2.0 22.6 25.4
21 0.636 0.7 2.2 25.4 28.6
30 0.636 0.7 2.4 30.4 34.1
* Nominal values.

Colour of conductors
Conductor 1* Conductor 2*
Light blue White + no.

* of each pair.
