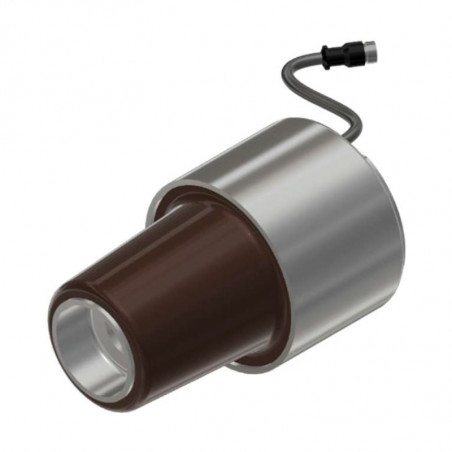

Spannungssensor mit einem kurzen Kegel - T240K

voltage sensor – T240K

The voltage sensor range is designed according the IECstandard to meet maximum combability on the market. This product is designed for use in conjunction with devices, which are build according the standard. The voltage sensor cone shape compatible to different manufacturers of T-cable connectors like Cellpack, Nexans, Südkabel, nkt, Tyco



Features

 No calibration on Site is needed
 Accuracy class according IEC61869-11:
0,2/0,5/1/3 [&] 3P/6P
 Cost efficient design
 Easy to install and robust design
 Short form factor, double T-cable
extensions could be used.
 Accuracy over complete lifetime



Dimensions

The short form factor enables maximum compatibility to existing installations. The hexagonal nut is
made of solid aluminium for maximum torque during the installation.



Installation


The voltage sensor is simple to install; the existing blind plug
could be removed and the voltage
sensor could be screwed in, without making calibration
measurements in the switch gear.



The voltage sensor earthing point must be connected with ≥ 6mm²
wire to the switch gear ground





Connection



The voltage sensor is directly connected to a measurement
device. Contact Vendor for a list of compatible devices. 3
Voltage sensors should be used for each device.





M8-Subconnector


1… Connection a, brown wire
3… Connection n, black wire
4… Shield connection point



Specification
Applied Standards: IEC61869-1, IEC61869-6, IEC61869-11
Primary voltage: 20000/√3V*
Voltage factor 1,9*Un for 8h
Secondary output: 3,25/√3V*
Burden: 200kOhm±1%, 350pF*
Insulation level: 24/50/125kV
Accuracy classes: 0,2/0,5/1/3 [&] 3P/6P according IEC61869-11
Operating temperature range: -25°C to +65°C
Storage temperature range: -40°C to +80°C
Frequency: 50 or 60Hz*
Overvoltage protection: Internal surge arrestor
Cable:

2pole, shielded, twisted pair, 2m, open ends (brown-a, black-n)*
* or customer defined
