Hersteller: WeSiTec eK

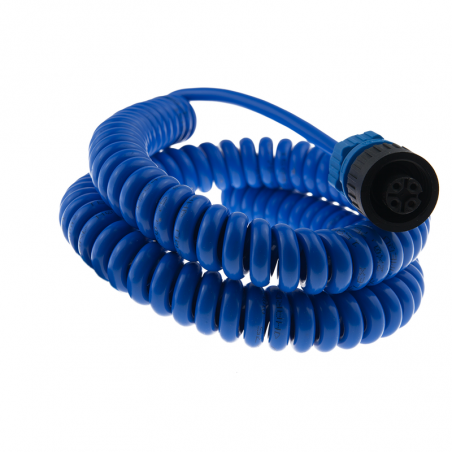

Spiralcable (2-Core) - Bi-Fifty-Spiralkabel

The 2-pole WeSiTec spiral cables are used to connect the intrinsically safe SI-SYMEGA-VO circuits / grounding with the circuit (e.g. grounding terminals). Its cable sheath is well resistant to acids, alkalis, mineral oils, fats and other chemicals. Spiral cables meet all the requirements of DIN EN 60079-0 and DIN EN 60079-14 and can be suitably used in potentially explosive areas. Spiral cables are silicone-free. The spiral cables are only intended for use in intrinsically safe circuits in accordance with DIN EN 60079-11.

Order description

DescriptionBlock lengthItem number
1m spiral cable, blue, copper wire, 2x0,75mm² without connectors M+F 230 mm A416334
1m spiral cable, blue, copper wire, 2x0,75mm² with socket M 230 mm A173113
1m spiral cable, blue, copper wire, 2x0,75mm² with plug + socket M+F 230 mm A416336

3m spiral cable, blue, copper wire, 2x0,75mm² without connectors M+F 750 mm A175042
3m spiral cable, blue, copper wire, 2x0,75mm² with socket M 750 mm A173114
3m spiral cable, blue, copper wire, 2x0,75mm² with plug + socket M+F 750 mm A173110

5m spiral cable, blue, copper wire, 2x0,75mm² without connectors M+F 1.250 mm A175102
5m spiral cable, blue, copper wire, 2x0,75mm² with socket M 1.250 mm A173115
5m spiral cable, blue, copper wire, 2x0,75mm² with plug + socket M+F 1.250 mm A173111

10m spiral cable, blue, copper wire, 2x0,75mm² without connectors M+F 2.500 mm A175111
10m spiral cable, blue, copper wire, 2x0,75mm² with socket M 2.500 mm A173116
10m spiral cable, blue, copper wire, 2x0,75mm² with plug + socket M+F 2.500 mm A173112
