Hersteller: Crydom

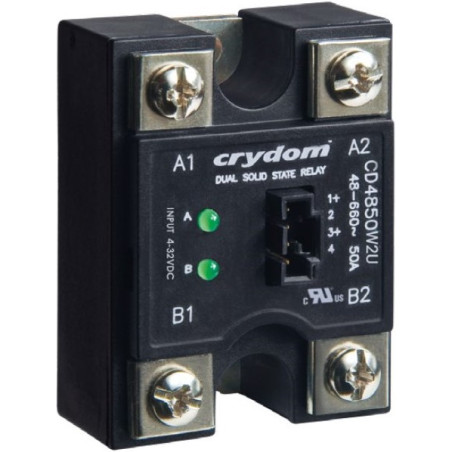

EVOLUTION DUAL SERIE

The Sensata | Crydom Evolution Dual family of solid-state AC relays mounted on the panel is an innovative line that expands the classic Cydom dual SSR family, offering improved mechanical and thermal designs for higher power density. These dual-output SSRs are available in ranges of 26 and 50 amperes at 24 to 480 VAC.

The Evolution Dual SSRs have two outputs controlled by two independent DC control inputs and are available with various input and output connection options, providing great flexibility in combinations.

Features

  • Outputs rated at 25 and 50A per channel at 40 degrees Celsius
  • Operating voltage range of 24 to 280 and 48 to 600 VAC
  • 3 options for control input connections
  • Zero-crossing turn-on outputs
  • LED status indicator for each channel
  • Available with IP20 "touch-safe" cover
  • UL508 endurance rating

Applications

  • Industrial ovens
  • Plastic injection molding equipment
  • Packaging machinery
  • Professional kitchen equipment
  • Lighting control
  • HVAC&R (Heating, Ventilation, Air Conditioning, and Refrigeration)

Product Selection

Control Voltage 240V, 25A 240V, 50A 480V, 25A 480V, 50A
4-32 VDC CD2425W2U CD2450W2U CD4825W2U CD4850W2U


Output Specifications

Description Cx2425xxxx Cx2450xxxx Cx4825xxxx Cx4850xxxx
Operating Voltage (47-440Hz) [Vrms] for UL-508 24-280 24-280 48-600 48-600
Operating Voltage (47-440Hz) [Vrms] for EN 62314 280 280 480 480
Load Current Range [Arms] 0.15-25 0.15-50 0.15-25 0.15-50
Maximum Load Current [Adc] 600 600 1200 1200
Maximum Off-State Leakage Current at Rated Voltage [mArms] 1.0 1.0 1.0 1.0
Minimum Turn-On dV/dt at Maximum Rated Voltage [V/usec] 500 500 500 500
Maximum Single Half-Cycle Surge Current (50/60Hz) [Apk] 275/300 710/750 275/300 710/750
Maximum 50Hz Surge Current (20ms) [Apk] 275 710 275 710
Maximum On-State Voltage Drop at Rated Current[Vpk] 1.3 1.3 1.3 1.3
Thermal Resistance, Junction-to-Case (Rjc) [degrees Celsius/W] 0.65 0.33 0.65 0.33
Maximum I2t for Fusing (½ cycle) (50/60Hz) [A2sec] 380/370 2520/2320 380/370 2520/2320
Minimum Power Factor (at Maximum Load) 0.5 0.5 0.5 0.5


Input Specifications

Description CxxxWxxx
Control Voltage Range 4-32 VDC
Minimum Turn-On Voltage 4 VDC
Minimum Turn-Off Voltage 1.0 VDC
Typical Input Current [mA] 10 mA at 12 VDC
Input Impedance See note
Maximum Turn-On Time [msec] ½ cycle
Maximum Turn-Off Time [msec] ½ cycle


General

Description Parameters
Dielectric Strength, Input to Output, Base (50/60Hz) 4000 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input/Output 10 pF
Ambient Temperature Range for Operation -40 to 80 degrees Celsius
Ambient Temperature Range for Storage -40 to 125 degrees Celsius
Weight (typical) 68.5 g
Terminals Output: #8-32 threaded
Max. Torque Output: 2.2 Nm
Max. Wire Size 2x3.8mm
