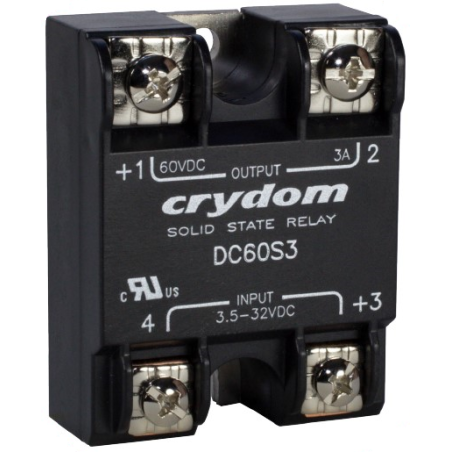

DC60 SERIE

Features

  • Current Range from 3A to 7A at 60VDC
  • Bipolar Transistor Output
  • UL Approved, CE EN60950-1 Compliant
  • Improved SEMS Screws and Washer
  • Redesigned Housing with Anti-Rotation Barriers
  • AC and DC Control
  • Epoxy-free Design
Control Voltage 3A 5A 7A
3.5-32 VDC DC60S3 DC60S5 DC60S7
90-280VAC/VDC DC60SA3 DC60SA5 DC60SA7


Output Specification

Description 3A 5A 7A
Recommended Operating Voltage [Vrms] 3-48 3-48 3-48
Absolute Maximum Voltage Range [Vdc] 60 60 60
Maximum Leakage Current at Rated Voltage [mA] 0.1 0.1 0.1
Maximum Load Current [Adc] 3 5 7
Minimum Load Current [mA] 20 20 20
Maximum Surge Current (10msec) [Apk] 6 10 14
Maximum Voltage Drop at Rated Current [Vdc] 1 1.2 1.3
Thermal Resistance, Junction-to-Case (Rjc) [°C/W] 2 2 2
Minimum Thermal Dissipation Capability for Rated Current at Ambient Temperature (for maximum current = °C/W and Ta) 5 at 60 degrees Celsius 5 at 60 degrees Celsius 5 at 40 degrees Celsius


Input Specification

Description DC Control AC Control
Control Voltage Range 3.5-32 VDC 90-280 VAC
Maximum Reverse Voltage -32 VDC -
Minimum Turn-On Voltage 3.5 VDC 90 VAC/VDC
Minimum Turn-Off Voltage 1 VDC 10 VAC/VDC
Minimum Input Current (for Turn-On) 2.2 mA 2 mA
Maximum Input Current 25 mA 5.5 mA
Input Impedance 1500 Ohm 60K
Maximum Turn-On Time [msec] 0.1 10
Maximum Turn-Off Time [msec] 0.3 340


General Specifications

Description Parameters
Dielectric Strength, Input-Output-Base (50/60Hz) 4000 Vrms
Minimum Insulation Resistance (at 500V DC) 109 Ohms
Maximum Capacitance, Input-Output 8pF
Ambient Temperature Range (Operating) -30 to 80 degrees Celsius
Ambient Temperature Range (Storage) -40 to 125 degrees Celsius
Weight (typical) 17 g
Housing Material UL94 V-0
Base Plate Material Aluminium
Input Terminal Screw Torque (Nm) 1.5-1.7
Load Terminal Screw Torque Range (Nm) 2-2.2
Mounting Torque Range for SSR (Nm) 2-2.2
Input/Load Terminal Screw Torque Range (Nm) 1.5-1.7
Humidity for IEC 60068-2-78 85% non-condensing
MTBF (Mean Time Between Failures) at 40 degrees Celsius ambient 11,641,553 hours (1,328 years)
MTBF (Mean Time Between Failures) at 60 degrees Celsius ambient 7,210,376 hours (823 years)
