Hersteller: ELEQ

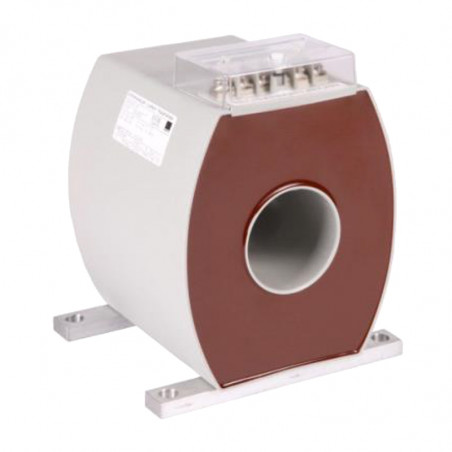

Aktuelle Transformatoren für Schaltgeräte - SAV150

The SVA150 is specially designed for application in medium voltage installations as Ring Main Units. This cast measuring
transformer is cost effective and very reliable. Multi-core and multi ratio types are available in measuring and protection classes.


Environmental conditionss
This product is designed to be safe under the following conditions:
Location Indoor use
Ambient temperature: -5°C .. +40°C
Relative humidity: 5% .. 85%, non condensing
Protection degree: IP20
Suitable for: Cables, bus-bar
Application conditions
Standard: IEC 60044-1
Rated short-time thermal current (lth): 60 x In/1s
Continuous thermal current (lth): 100%
Rated insulation level: 0,72/3/-kv
Rated frequency: 50/60Hz
Class of insulation: E
Primary current 30-1000A
Primary window dimensions: Ø 60mm
Secondary terminal: Screw terminals (max. 2Nm)
Wire diameter max. 6mm² solid max 4mm² stranded




Radio Class Burden Atricle number
600-250/1/1 0.2/10P10 5VA 106530
400-150/1/1 0.2/5P10 5VA 106531

Wiring diagram
