Superkondensoren.
  • Superkondensoren.

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: LS Mtron

Superkondensoren.

Specifications:
Rated voltage 2,8V
Zakres pojemności: 3F – 3000F
Capacity range: 10%
Operating temperature range: -40°C ÷ 65°C


Ogniwa

Part No. Capacitance
C[F]		 Rated Voltage
UR[V]		 ESR DC [m Ω] Max. Current [A]

Leakage Current
[mA]

 Gęstośc energii [Wn/kg] Weight [kg] Operating Temperature Range
[oC]		 Dimension [mm]

LSUC02R7R 0003F EA

 3 2.7 100 3 <1 2.03 0.002 -100 Ø8x20

LSUC02R7R 0005F EA

 5 2.7 75 4.5 <1.2 2.03 0.003 -100 Ø10x20

LSUC02R7R 0010F EA

 10 2.7 50 9 <1.4 2.89 0.004 -100 Ø10x20

LSUC02R7R 0025F EA

 25 2.7 35 19 <1.5 3.89 0.007 -100 Ø16x26

LSUC02R7R 0050F EA

 50 2.7 25 30 <1.6 3.62 0.014 -100 Ø18x46

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 500 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

Part No. Capacitance
C[F]		 Rated Voltage
UR[V]		 ESR DC [m Ω] Max. Current [A] Leakage Current
[mA]		 Gęstośc energii [Wn/kg] Weight [kg] Operating Temperature Range
[oC]		 Dimension [mm]

LSUC 002R8S 0100F EA

 100 2.8 9 74 < 0.3 4.73 0.023 25 Ø22x46

LSUC 002R8S 0120F EA

 120 2.8 9 81 < 0.4 5.23 0.025 25 Ø25x46

LSUC 002R8L 0350F EA

 350 2.8 3.2 231 < 1 5.86 0.065 25 Ø35x61

LSUC 002R8L 0400F EA

 400 2.8 3 255 <1 5.89 0.074 25 Ø35x71

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 500 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

Part No. Capacitance
C[F]		 Rated Voltage
UR[V]		 ESR DC [m Ω] Continuous current[A] Leakage Current[mA] Weight [kg] Operating Temperature Range
[oC]		 Dimension [mm]

LSUC 002R7C 0650F EA

 650 2.7 0.57 640 <1.5 0.215 -40~65 Ø60x51.5

LSUC 002R7C1200F EA

 1200 2.7 0.33 1160 <2.7 0.295 -40~65 Ø60x74

LSUC 002R7C1500F EA

 1500 2.7 0.28 1426 <3.0 0.335 -40~65 Ø60x85

LSUC 002R7C 2000F EA

 2000 2.7 0.27 1753 <4.0 0.395 -40~65 Ø60x102

LSUC  002R7C 3000F EA

 3000 2.7 0.23 2396 <5.0 0.525 -40~65 Ø60x138

life time(25°C, UR):
- 10 years (ΔC<20% decrease, ΔESR<100% increase of initial specified value)
- 1 000 000 cycles (ΔC<20% decrease, ΔESR<100% increase of initial specified value)

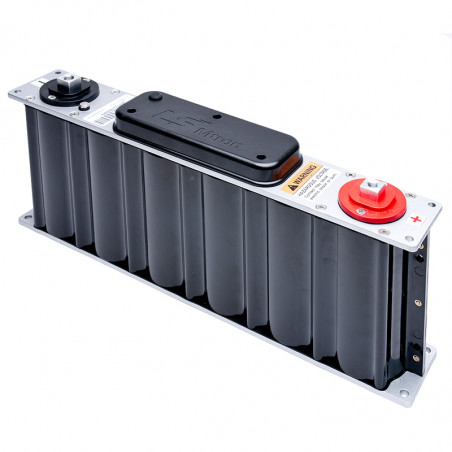

Modules

Part No. Capacitance
C[F]		 Rated Voltage
UR[V]		 ESR DC
[m Ω]		 Continuous current[A] Leakage Current[mA] Weight
[kg]		 Wyrówny-
wanie		 Monitoro-
wanie		 Zakres
temp. pracy
[oC]		 Dimension
LxWxH
[mm]

LSUM 016R8L 0058F EA

 58 16.8 22 20 <11 0.6 Aktywne
lub pasywne		 - -40~65 245x47x76.6

LSUM 016R2C 0500F EA

 500 16.2 1.7 200 <5 5.1 Temperatura
(NTC)		 -40~65 416.2 x67.2x175.9

LSUM 048R6C 0166F EA

 166 48.6 5 150 <5 14.2 -40~65 418x194x175.4

LSUM 048R6C 0166F EA

 166 48.6 5 200 <5 16.7 -40~65 418x468,5x 71

LSUM 086R4C 0093F EA

 93 86.4 11.3 80 <120 26 Pasywne Temperatura (PT100) -40~65 517x265x194

LSUM 129R6C 0062F EA

 62 129.6 13.2 260 <5 53 Aktywne lub pasywne Temperatura
i napięcie (CAN2.0B)(2)		 -40~65 720x405x226

Modules 125V - Traction, UPSs, etc.
Primary specification

Part No. Capacitance
C[F]		 ESR DC
[m Ω]		 Max. Current
[A]		 Leakage Current
[mmA]

LSUM 129R6C 0062F EA

 62,5 13,2 2,3 <27

Power [&] Energy

Part No. Energia właściwa
[Wh/kg]		 Ilość zmagazynowanej energii

LSUM 129R6C 0062F EA

 62,5 13,2

Standard [&] Reliability

Rated Voltage 129.6V
Max. Voltage 136.8V
Capacitance Tolerance 0% / +20%
Operating temperature range -40 ~ 65 °C
Storage temperature range -40 ~ 70 °C
Max. continuous current ΔT = 15 oC 189A
ΔT = 40 oC 260A
life time(25oC) After 10 years at rated voltage and 25oC
Capacitance change < 20%
Zmiana ESR  <100%
Cycle life (25oC) After 1000 000 cycles between rated voltage to half rated voltage at +25oC
Capacitance change < 20%
Internal resisteance change  <100%

Monitoring

Part No. Temperature sensor Temperatur [&] Voltage interface Balancing

LSUM  0129R6C 0062F EA

 NTC Thermistor CAN 2.0B Passive or Active

Safet [&] Physical Proteciton

Isolation voltage (DC) Short circuit current (A) Environmental Proteection Shock [&] vibration Protection
4 kV 9800 IP67 IEC-61373

Dimension i Weight

Part No. Dimension [mm] Weight
Lenght Width Height
LSUM 129R6C 0062F EA 720 405 226 53

Dimension [mm]
