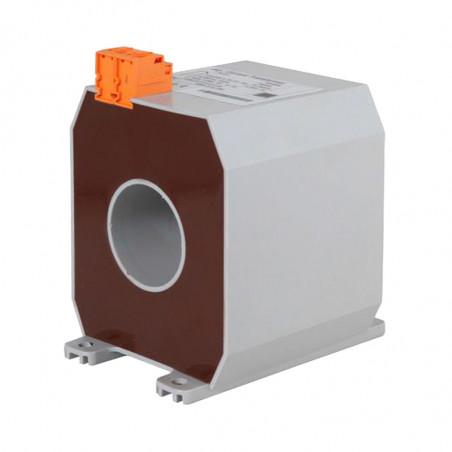

SVA100 - Stromtransformator

SVA100 Current transformer

The low power switchgear current transformers in SVA100 housing is specially designed for application in medium voltage installations as Ring Main Units (RMU). This solid, cast resin transformer is cost effective and very reliable. For many years ELEQ develops and produces these protection transformers for the switchgear market. The transformers are specially designed for dynamic loads and applicable for the so called self powered relays like Woodward SEG, WIC1 and others.



Rated data

Location Indoor use
Protection degree IP20
Rated frequency 50/60Hz
Insulation class E (120°C)
Primary windows suitable to calbe Ø50mm
Material PU i PA6.6
Secondart terminals 4mm2/6mm2 screw connection
Test winding 0.288A
Burden Contact manufacturer for details


Current range Class Cable diameter Number
8-32A 5P80 45mm

4G2401
16-56A 10P80 50mm

4G2201N
32-112A 5P80 50mm

4G2202N
64-224A 5P80 50mm

4G2203N
128-448A 5P80 50mm

4G2204N
16-56A 5P80 50mm

4G2205N
256-896A 5P80 50mm

62200

Connection diagram

SVA100 Current transformer - connection diagram

Dimensions

SVA100 Current transformer - dimensions
