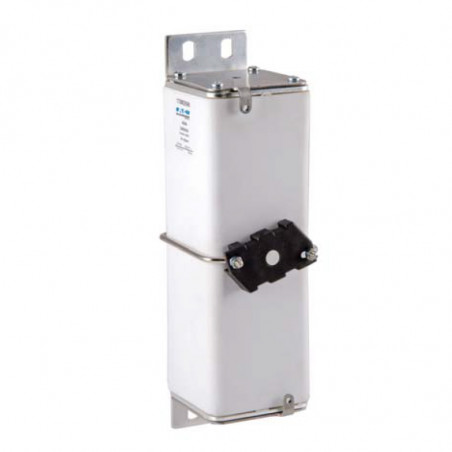

Nominal current: 200-600A
Rated voltage: 2400VDC
Breaking capacity: 100kA at 2400Vdc, L / R < 15ms100kA at 2000Vdc, L / R
Code | Rated voltage [Vdc] | Rated current [A] | I2t[A2s] | Watts Loss[W] | ||
---|---|---|---|---|---|---|
Pre-Arcing | Total at2000V | 0,8ln | ln | |||
170M2090 |
2400 | 100 | 5468 | 15,457 | 20 | 39 |
170M2091 |
160 | 16,427 | 46,439 | 43 | 84 | |
170M2092 |
200 | 25,667 | 72,561 | 53 | 97 | |
170M2093 |
250 | 36,96 | 104,488 | 60 | 103 | |
170M2094 |
315 | 66,977 | 189,346 | 82 | 162 | |
170M2095 |
350 | 87,48 | 247,309 | 89 | 175 | |
170M2096 |
400 | 110,717 | 313 | 103 | 203 |
Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?
Sie müssen eingeloggt sein
Nominal current: 200-600A
Rated voltage: 2400VDC
Breaking capacity: 100kA at 2400Vdc, L / R < 15ms100kA at 2000Vdc, L / R
Code | Rated voltage [Vdc] | Rated current [A] | I2t[A2s] | Watts Loss[W] | ||
---|---|---|---|---|---|---|
Pre-Arcing | Total at2000V | 0,8ln | ln | |||
170M2090 |
2400 | 100 | 5468 | 15,457 | 20 | 39 |
170M2091 |
160 | 16,427 | 46,439 | 43 | 84 | |
170M2092 |
200 | 25,667 | 72,561 | 53 | 97 | |
170M2093 |
250 | 36,96 | 104,488 | 60 | 103 | |
170M2094 |
315 | 66,977 | 189,346 | 82 | 162 | |
170M2095 |
350 | 87,48 | 247,309 | 89 | 175 | |
170M2096 |
400 | 110,717 | 313 | 103 | 203 |
