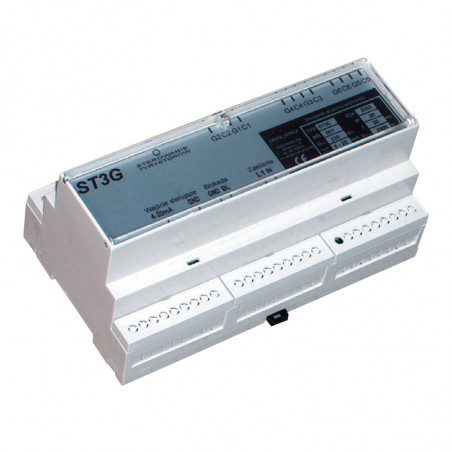

Thyristoren-Treiber der Serie ST

USAGE
 Thyristor phase control in one phase rectifier bridges, thyristor regulators.



Type ST1F ST3F ST3G
Technical data
Supply voltage and synchronization 230V lub 400,50Hz 3x230V,50Hz 230V,50Hz
Gate impulses: 10kHz/60µs/0.2A 10kHz/60µs/0.2A 10kHz/60µs/0.2A
Supply voltage tolerance -15% ÷ +10%Un -15% ÷ +10%Un -15% ÷ +10%Un
Angel control range
thyristor conductance 0-170 o el 0 - 170 o el 0 - 170 o el
Control signals 0-10V
4-20mA
external potentiometer		 0-10V
4-20mA
external potentiometer		 0-10V
4-20mA
external potentiometer
Blockade signal

negative logic                positive logic

 negative logic             positive logic negative logic                 positive logic
Thyristor control phase phase group
Cooling air air air
International Protection Rating IP20 IP20 IP20
Voltage insulation 2,5kV 2,5kV 2,5kV
impurity level 3 3 3
Operation temperature range 0-40°C 0-40°C 0-40°C
Store temperature range -20 do 60°C -20 do 60°C -20 do 60°C
Power regulation range doesn't concern doesn't concern 0-95%
Phase control doesn't concern YES NO
Humidity up to 85% up to 85% up to 85%
Height up tp lOOOm up tp 1000m up to 1000m
Casing plastic for din bus assemlbyTS35 plastic for din bus assemlbyTS35 plastic for din bus assemlbyTS35
dimensions 160x90x75 mm 220x165x90mm 160x90x75mm
Weight 1,2 kg 2,5kg 0,4kg
Caution:
*Please specify the control signal on your order
