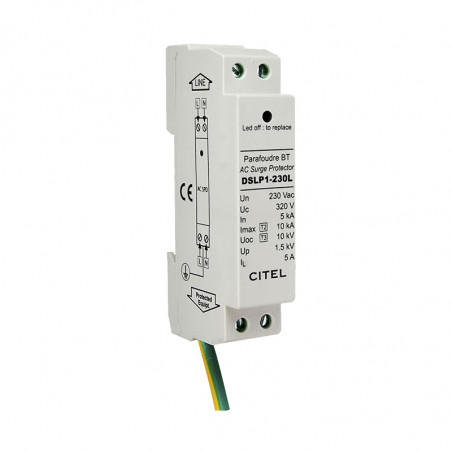

Surge Protector for LED lighting system DSLP1-230L

• Type 2 (or 3) surge protectors for Led
• Very compact (low profile)
• DIN rail mounting
• Screw terminal connection
• Status indicator
• Disconnection AC end of life
• IEC 61643-11 and EN 61643-11 compliance



Ograniczniki przepięć z okablowaniem typu 2+3 (C+D)DSLP1-230L

Characteristics

Description MLPC1-230L-V
Network 230-277V AC
Max. Load current IL 5A
Max. AC operating voltage UC 320V AC
Nominal discharge current
- 15 x 8/20 µs impulses		 In 5kA
Max. discharge current
-max. withstand @ 8/20 µs by pole		 Imax 10kA
Withstand on Combination waveform - Class III test Uoc 10kV / 5kA
Withstand on overvoltages IEEE C62.41.1   10kV / 10kA
Protection level CM/DM
@In (8/20µs) and @ 6kV (1.2/50µs)		 Up 1,5kV
Admissible short-circuit current ISCCR 10000A
Mechnical characteristics
Thermal disconnector internal
Dimensions see diagram
Connection to Network Screw terminal 2.5 mm² max.
Earthing conductor 2 mm² - length 60 cm
Disconnection indicator Disconnection and AC line cut-off
Failsafe behavior Led green OFF and AC network cut-off
Remote signaling of disconnection none
Mounting Symmetrical rail 35mm (EN60715)
Operating temperature -40 do +85°C
Protection rating IP20
Housing material Thermoplastic UL94-V0
Standards compliance EN 61643-11 / IEC 61643-11
Part number
PN-EN 61643-11       Poland surge arrester type 2+3
EN 61643-11            Europe Low Voltage SPD (class II [&] III test)
IEC 61643-21            International -
Part number 352913

Dimensions and diagrams

Ograniczniki przepięć z okablowaniem typu 2+3 (C+D)DSLP1-230L wymiary
Ograniczniki przepięć z okablowaniem typu 2+3 (C+D)DSLP1-230L schemat

GDT: Gas Discharge Tube
V: Varistor
Ft: Thermal fuse
t°: Thermal system disconnection
