Hersteller: CAMDENBOSS

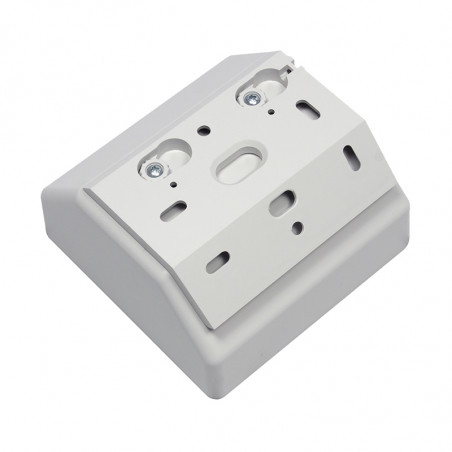

Universalgehäuse zur Montage in einer Winkelreihe 1500

1500 series - universal smart enclosure kit



A multi-purpose, advanced plastic enclosure ideal for modern electronic applications. The 45 degree angles allow the enclosure to be mounted at an angle on desks or walls, it can also be mounted directly in the corner of a room.
  • Includes versatile wall mounting system providing a variety of mounting options
  • Multi-faceted design can be used in a variety of orientations
  • Two sets of PCB pillars in both the lid and base allow multiple PCB mounting options
  • Lid panel secured by single screw for ease of assembly
  • Lid features a recess; ideal for touch pads, digital displays and overlays
  • Premium quality, modern appearance
  • Moulded in UL94-V0 ABS
  • Available in vented and unvented versions
  • Available in black, white or grey
  • Manufactured in the UK
  • Components of kit available separately (subject to MOQ’s and lead times)




Technical data


Material Base UL94-V0 ABS
Lid UL94-V0 ABS / brass M3 insert
Wall mount bracket UL94-V0 ABS
Wall mount lugs UL94-V0 ABS
All screws / nuts BZP (bright zinc plated steel)
Colours available White Similar to RAL9003
Black Similar to RAL9005
Grey Similar to RAL7035
Operating temperature from -10°C to +80°C
Screw torque Self tapping (security and mounting lug) 0.2Nm Max insertions = 2
M3 (lid and mounting lug) 0.5Nm Max insertions >1000



External dimensions



(*) Height includes lid.


1500 series kit with 45° wall mount bracket


Part No.StyleColour
CB1500-10VWH-KIT Vented White
CB1500-10SWH-KIT Solid White
CB1500-10VBK-KIT vented Black
CB1500-10SBK-KIT Solid Black
CB1500-10VGY-KIT vented Grey
CB1500-10SGY-KIT Solid Grey

Kit contains: lid, M3 lid screw, 45° wall mount bracket, wall mount lugs, No4 self tapping lug screws, M3 screws, M3 lug nuts, wall mount securioty screw.
