MLH Series Druckmessumformer
  • MLH Series Druckmessumformer

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Honeywell

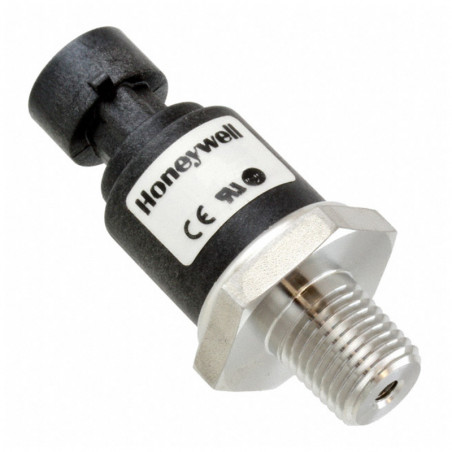

MLH Series Druckmessumformer

MLH Series pressure sensors combine Application Specific Integrated Circuit (ASIC) technology with a media isolated, metal diaphragm design. This digitally compensated sensor offers value and performance, making it the ideal pressure sensing solution for demanding applications. Fully temperature compensated, calibrated and amplified, the MLH is available in 50 psi to 8,000 psi pressure ranges.

Technical data

Housing material: port: stainless steel 304L
  black plastic
Weight: 57g
Reaction time: < 2 ms
Accuracy: ±0,25% FS
Compensated and operating temperature range: -40...125°C
Process terminal: G1/4
Electric terminal: M12x1 (IP67)
Output signal: 4...20 mA

Applications

  • Compressors
  • Refrigeration and HVAC/R
  • General industrial
  • General hydraulics
  • Multiple transportation applications including braking and alternate fuels
  • Medical

Type Range Refer voltage
MLH004BGD14B 4 bar Atmospheric pressure
MLH006BGD14B 6 bar Atmospheric pressure
MLH010BGD14B 10 bar Atmospheric pressure
MLH016BGD14B 16 bar Atmospheric pressure
MLH025BGD14B 25 bar Mean atmospheric pressure value
MLH040BGD14B 40 bar Mean atmospheric pressure value
MLH100BGD14B 100 bar Mean atmospheric pressure value
MLH250BGD14B 250 bar Mean atmospheric pressure value

Dimensions [mm/cal]
