Hersteller: Kerafol

Wärmedämmische Isoliermaterialien

Thermoconducting isolation materials

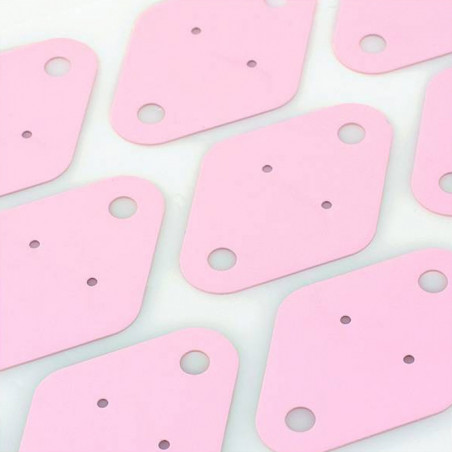

Standard films are flexible and consist of a silicone elastomer, filled with various thermoconductive ceramic materials. All film types are electrically insulating. For increased mechanical strength, the films are also available with fibreglass reinforcement.
The standard films adapt to the component surface. Small irregularities can be evened out by using only minimal contact pressures.
The good thermal properties of these films guarantee optimum heat transfer to the heat sink and at the same time achieving good electrical insulation properties.

Product features
  • Good insulation properties
  • Heat-conducting
  • Good compressibility
  • Fully crosslinked
  • Flexible
  • Environmentally friendly
  • RoHS conforming
  • REACH conforming
Packaging
Sheets: 450 x 250 mm
    Rolls:
  • 500 mm wide (without adh. coating)
  • 470 mm wide (with adhevsive coating)
Custom dimensions on request.


Technical data


Material   Thermal conductivity Thermal resistance Breakdown voltage Thickness** Hardness
W/mK K/W kV mm Shore A
86/82 Red with fibreglass reinforcement 6.5 0.09 1.0 0.25, 0.3 60-70
86/60 Pink 4.5 0.14 5.0 0.15, 0.25, 0.5 45-60
86/60 Pink 4.5 0.14 5.0 0.15, 0.25, 0.5 45-60
86/50 Pink 3.5 0.16 1.5 0.125, 0.225, 0.325, 0.425, 0.5 70-80
86/30 White 2.5 0.22 1.5 0.125, 0.225, 0.325, 0.425, 0.5 70-80
86/37 Green 1.8 0.32 8.0 0.125, 0.225, 0.325, 0.425, 0.5 65-75
70/50 Brown with fibreglass reinforcement 1.4 0.44 5.0 0.25, 0.3, 0.35, 0.4, 0.5 80-90
U90 Silicone free 6.0 0.08* 4.0 0.1, 0.2, 0.3 70-85
U85 Silicone free 3.0 0.17* 6.0 0.2 70-85
U80 Silicone free 1.8 0.20 4.0 0.15, 0.3 80-90
MT 103 Elastomer 1.8 0.39 10.0 0.28 70-85
MT 102 Elastomer 1.1 0.53 10.0 0.25 65-75


(*) Rounded values.
(**) Parameters for bolded values.
