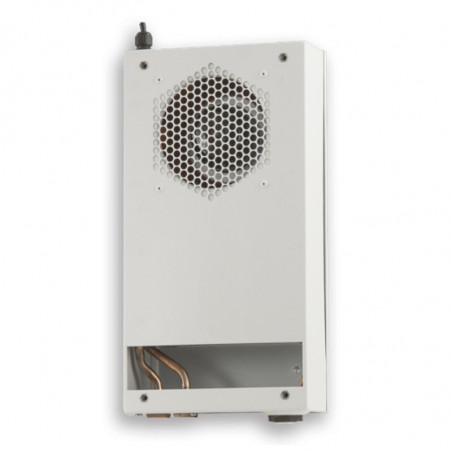

Wärmetauscher für Telekommunikationsschränke
  • Wärmetauscher für Telekommunikationsschränke

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: SEIFERT mtm SYSTEM

Wärmetauscher für Telekommunikationsschränke

A B C D E F

RK-2114 i RK2116*A series- without water flow controller:** Am series - with water flow controller
Typ Moc schładzania
[W]
L35L35		 Dimensions
[mm]		 Supply current and voltage
[A/V]		 Air flow heat exchanger/cabinet
[m³/h]		 Picture
RK-2114A400* 700 water cooling 400x212x80 0.4/230 315 A
RK-2114A400 120* 0.8/120
RK-2114B400 700 water cooling 400x212x80 0.4/230 315 B
RK-2114B400 120 0.8/120
RK-2114B718 1400 water cooling 718x212x80 0.4/230 250 C
RK-2114B718 120 0.8/120
RK-2114A632* 700 water cooling 632x212x80 0.4/230 0.8/120 400 D
RK-2114A632 120*
RK-2114AM632** 700 water cooling 632x212x80 0.4/230 400 E
RK-2114AM632 120** 0.8/120
RK-2114A* 1400 891x212x80 0.4/230 350
RK-2114A120* 0.8/120
RK-2114AM** 1400 water cooling 8912x212x80 0.4/230 350
RK-2114AM 120** 0.8/120
RK-2116AM" 2500 water cooling 891x212x105 0.56/230 350 F
RK-2116AM 120** 1.2/120
RK-2116AM 400** 0.4/400
RK-2116A* 2500 water cooling 891x212x105 0.56/230 350
RK-2116A120* 1.2/120
RK-2116A400* 0.4/400
Caution
  *L35L35
    |  |____ external temperature
    |_______ cabinet temperature



Drawing A RK-2140
Drawing B RK-2124

Drawing C
Drawing D
Drawing E

Drawing F KG-4530
Drawing G KG-4535

Version Type Cooling power
[W]
L35L35*		 Dimensions
[mm]		 Supply current and voltage
[A/V]		 Air flow heat exchanger/cabinet
[m3h]		 Weight
[Kg]		 Picture
Wall RK-2140 4000 water cooling* 800x560x130 1/230 900 24.0 A
RK-2140 400 0.24/400
Roof RK-2124 2000 water cooling* 280x360x600 0.9/230 450 25.0 B
RK-2124 120 1.6/120
panel 19” RK-2192 1000 water cooling* 87x443x405 0.4/230 180 13.0 C
RK-2192 120 1.3/120
panel 19” RK-2194 2000 water cooling* 175x443x505 0.45/230 360 16.5 D
RK-2194 120 1.3/120
panel 19” LT-3194 1000 Air cooling 175x443x570 0.9/230 360/340 17.0 E
LT-3194 120 1.7/120

Version Type Cooling power
[W]
L35L35*		 Dimensions
[mm]		 Supply current and voltage
[A/V]		 Air flow heat exchanger/cabinet
[m3h]		 Weight
[Kg]		 Picture
panel 19” KG-4530 1000 265x444x565 4.5/230 720/360 45.0 F
KG-4530 120 900 9/120
panel 19” KG-4535 1000 265x444x565 4.5/230 720/360 45.0
KG-4535 120 900 9/120 G
