Hersteller: M-SYSTEM

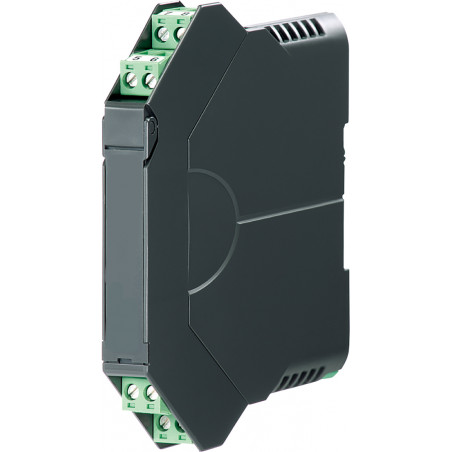

M3SXM - Signalwandler mit Widerstandseingang - 12 mm Breite - anpassbar

  • M3SXM

M3SXM is a converter with resistance input. Narrow design. Configurable ranges.


Features

  • Perfect to be used as a quick solution, multi-functional spare part
  • Provides isolated DC signal
    • < li> DIN rail mounting
  • Standard output signal proportional to resistive input
  • PC configurable
  • AC / DC power
  • Version available with quick response
  • 2000V AC insulation

Input types: resistive 50Ω - 10kΩ
Output types: current or voltage with different ranges
Possibility to make a range of inputs / outputs on a special order.


Wire connection M3 screw terminals
Separation Input / Output / Power
Dielectric Strength DC: 2000V AC
AC: 1500V AC
Range Selection PC Configurable
Double Output None
Power AC / DC
Operating Temperature - 10 to + 55 ° C
Mounting DIN rail < / td>
Dimensions 12x106x110.5mm
