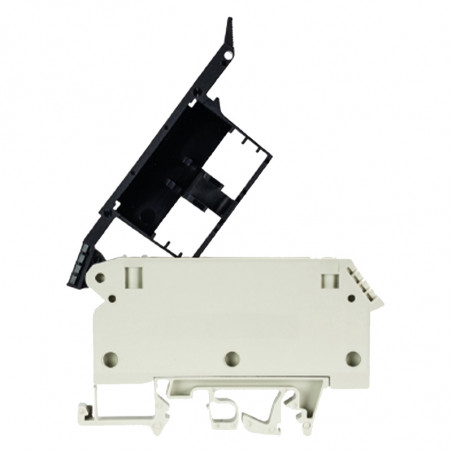

Sicherungsanschlüsse

Fuse insert
Nominal voltage: 250 V,
nominal current: VDE 0820 T2/IEC 257
Power loss 1,5 W
   - 6,3 A with single joint
   - 4 A with serial joints

sygnalizer (24 V): Glowing colour red
     Current consumption: 10,3 mA
sygnalizer . (220 V): lowing colour red
     Current consumption: 0,3 mA
  WK 4 TKG...SIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,3*)
Data UL
No. 22-10 AWG
   300 V*) 10
Data CSA
No. 20-10 AWG
   250 V*) 6,3
Construction width.     insulation length
6 mm
   9 mm

Certificates
  Type Catalogue number Package
Disconnectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.
Si ST
 Z1.299.4055.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST LED
 Z1.299.4155.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST GL
 Z1.299.4255.0 10
Diode insert J... = 10 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert with bridge j _10A
colour: grey

Disconectable with knife
colour: grey

  colour: blue.
- with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10
  colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6. Single short circuit switch cover

7. Separate plate




         )
nbsp]              katoda        )
  WK 4 TKG...DIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3
Data UL
No. 22-10 AWG
   300 V 10
Data CSA
No. 20-10 AWG
   250 V 6,3
Construction width.     insulation length
6 mm
     9 mm

Certificates
  Type Catalogue number Package
Disconectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.

Base for fuse with nominal signal (24V)
colour: grey

Base for fuse with nominal signal (220V)
colour: grey

Diode insert J... = 10 A
colour: grey
DIST...
 Z1.299.3055.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1N 4007-11)
 Z1.299.3155.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1 N 4007-22)
 Z1.299.3355.0 10
Diode insert with bridge j _10A
colour: grey
DIST-D
 Z1.299.3255.0 10
Disconectable with knife
colour: grey


colour: blue.

with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10

colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6.Single short circuit switch cover

7.
Separate plate










  WK 4 ThSI 5.../U
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,31)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 6,3
Construction width.     insulation length
8 mm
     8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 5...U
 57.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 5 LED 12 U
 57.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 5 LED 24 U
 57.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 5 LED 60 U
 57.904.5655.0 50
-with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 5 GL 250 U
 57.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 5 GL 500 U
 57.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

-with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover















  WK 4 ThSI 6,3..AI
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 102)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 10
Construction width.     insulation length
10 mm
   8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 6,3...U
 67.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 6,3 LED 12 U
 67.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 6,3 LED 24 U
 67.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 6,3 LED 60 U
 67.904.5655.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 6,3 GL 250 U
 67.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 6,3 GL 500 U
 67.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

- z with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover







Type WK




  WK 10/SI.../U
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint Base joint
colour: grey
WK10/SiU5x202)-8)9)10)
 57.910.5055.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x252)-8)9)10)
 57.910.5155.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK10/SiU5x302)-8)10)
 57.910.5255.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x321)-8)10)
 57.910.5355.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat ze stopką U
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover










  WK 10/SI.../U mit Kennmelder
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK10/SiU5x20M,NGL2)-6)7)8)
 57.910.5455.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x20M,GLB2)-6)7)8)
 57.910.5855.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WKIO/Si U B.3x32M, NGL1)-6)8)
 57.910.5755.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x32M,GLB1)-6)8)
 57.910.6155.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
   Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm
   VDE           CSA UL
Closing slat TS 32 with screw
width. 7,5 mm
57.910.5453.0

3. Closing plate 1,5 mm
colour: grey
nominal signalizer
 -250 V ~     500 V 150 V
4. short circuit switch, E-Cu
current consumption 0.16-0,8 mA9)
57.910.5853.0

non insulated
2-pole.
nominal signalizer         2
 8 V~          28 V 28 V

3-pole.
current consumption 24 mA10)


do 6-pole.
57.910.5753.0

5. Transparent cover
nominal signalizer
 -500 V ~     500 V 150 V

current consumption 0,16-0,8 mA9)
57.910.6153.0


nominal signalizer
 8 V~          28 V 28 V

current consumption 24 mA10)






  WK 10/SI U D
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10mm2
 1-16mm2 500V/6kV/3 57
Data UL
No. 22-6 AWG
   600 V 50
Data CSA
No. 16-6 AWG
   600 V 65
Construction width.     insulation length
12 mm
     13 mm

Certificates

<tr clas
  Type Catalogue number Package
Fuse joint base joint
colour: grey

- with LED 5-12 V ~/=- current consumption
2,3-7 mA

- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA

- with LED 24 - 60 V~/™ current consumption
1,5-4 mA

- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK10/SiUD
 57.910.4955.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: yellow
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus 32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

Weniger
Weiterlesen

Senden Sie eine Anfrage

Interessieren Sie sich für dieses Produkt? Benötigen Sie zusätzliche Informationen oder individuelle Preise?

Kontaktiere uns
FRAGEN SIE NACH DEM PRODUKT close
Vielen Dank für die Zusendung Ihrer Nachricht. Wir werden so schnell wie möglich antworten.
FRAGEN SIE NACH DEM PRODUKT close
Durchsuche
Senden Sie eine Anfrage

Zur Wunschliste hinzufügen

Sie müssen eingeloggt sein

Fuse insert
Nominal voltage: 250 V,
nominal current: VDE 0820 T2/IEC 257
Power loss 1,5 W
   - 6,3 A with single joint
   - 4 A with serial joints

sygnalizer (24 V): Glowing colour red
     Current consumption: 10,3 mA
sygnalizer . (220 V): lowing colour red
     Current consumption: 0,3 mA
  WK 4 TKG...SIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,3*)
Data UL
No. 22-10 AWG
   300 V*) 10
Data CSA
No. 20-10 AWG
   250 V*) 6,3
Construction width.     insulation length
6 mm
   9 mm

Certificates
  Type Catalogue number Package
Disconnectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.
Si ST
 Z1.299.4055.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST LED
 Z1.299.4155.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST GL
 Z1.299.4255.0 10
Diode insert J... = 10 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert with bridge j _10A
colour: grey

Disconectable with knife
colour: grey

  colour: blue.
- with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10
  colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6. Single short circuit switch cover

7. Separate plate




         )
nbsp]              katoda        )
  WK 4 TKG...DIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3
Data UL
No. 22-10 AWG
   300 V 10
Data CSA
No. 20-10 AWG
   250 V 6,3
Construction width.     insulation length
6 mm
     9 mm

Certificates
  Type Catalogue number Package
Disconectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.

Base for fuse with nominal signal (24V)
colour: grey

Base for fuse with nominal signal (220V)
colour: grey

Diode insert J... = 10 A
colour: grey
DIST...
 Z1.299.3055.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1N 4007-11)
 Z1.299.3155.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1 N 4007-22)
 Z1.299.3355.0 10
Diode insert with bridge j _10A
colour: grey
DIST-D
 Z1.299.3255.0 10
Disconectable with knife
colour: grey


colour: blue.

with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10

colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6.Single short circuit switch cover

7.
Separate plate










  WK 4 ThSI 5.../U
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,31)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 6,3
Construction width.     insulation length
8 mm
     8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 5...U
 57.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 5 LED 12 U
 57.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 5 LED 24 U
 57.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 5 LED 60 U
 57.904.5655.0 50
-with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 5 GL 250 U
 57.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 5 GL 500 U
 57.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

-with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover















  WK 4 ThSI 6,3..AI
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 102)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 10
Construction width.     insulation length
10 mm
   8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 6,3...U
 67.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 6,3 LED 12 U
 67.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 6,3 LED 24 U
 67.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 6,3 LED 60 U
 67.904.5655.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 6,3 GL 250 U
 67.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 6,3 GL 500 U
 67.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

- z with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover







Type WK




  WK 10/SI.../U
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint Base joint
colour: grey
WK10/SiU5x202)-8)9)10)
 57.910.5055.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x252)-8)9)10)
 57.910.5155.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK10/SiU5x302)-8)10)
 57.910.5255.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x321)-8)10)
 57.910.5355.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat ze stopką U
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover










  WK 10/SI.../U mit Kennmelder
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK10/SiU5x20M,NGL2)-6)7)8)
 57.910.5455.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x20M,GLB2)-6)7)8)
 57.910.5855.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WKIO/Si U B.3x32M, NGL1)-6)8)
 57.910.5755.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x32M,GLB1)-6)8)
 57.910.6155.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
   Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm
   VDE           CSA UL
Closing slat TS 32 with screw
width. 7,5 mm
57.910.5453.0

3. Closing plate 1,5 mm
colour: grey
nominal signalizer
 -250 V ~     500 V 150 V
4. short circuit switch, E-Cu
current consumption 0.16-0,8 mA9)
57.910.5853.0

non insulated
2-pole.
nominal signalizer         2
 8 V~          28 V 28 V

3-pole.
current consumption 24 mA10)


do 6-pole.
57.910.5753.0

5. Transparent cover
nominal signalizer
 -500 V ~     500 V 150 V

current consumption 0,16-0,8 mA9)
57.910.6153.0


nominal signalizer
 8 V~          28 V 28 V

current consumption 24 mA10)






  WK 10/SI U D
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10mm2
 1-16mm2 500V/6kV/3 57
Data UL
No. 22-6 AWG
   600 V 50
Data CSA
No. 16-6 AWG
   600 V 65
Construction width.     insulation length
12 mm
     13 mm

Certificates

<tr clas
  Type Catalogue number Package
Fuse joint base joint
colour: grey

- with LED 5-12 V ~/=- current consumption
2,3-7 mA

- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA

- with LED 24 - 60 V~/™ current consumption
1,5-4 mA

- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK10/SiUD
 57.910.4955.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: yellow
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus 32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

Weniger
Weiterlesen
Kommentare (0)
